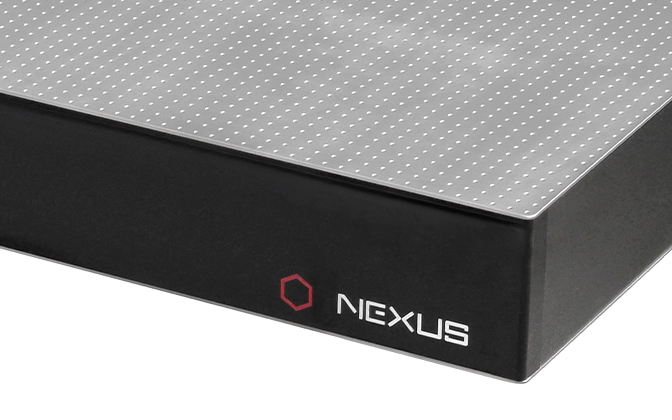

Nexus Optical Tables, 310 mm (12.2") Thick
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A thicker Nexus optical table for demanding beam stability, offered from 1 m x 2 m up to 1.5 m x 4 m. The 310 mm core raises stiffness so that deflection under a 150 kg central load stays below 1.2 micrometres, suiting interferometry and long beam paths.
Technical Specifications
| Parameter | Value |
|---|---|
| Table thickness | 310 mm (12.2") |
| Flatness of top skin | plus or minus 0.1 mm over any 1 square metre |
| Deflection under load | less than 1.2 micrometres for a 150 kg load |
| Maximum dynamic deflection coefficient | less than 0.4 x 10-3 |
| Core | high-density plated steel honeycomb, 0.26 mm thick |
| Maximum screw depth | 305 mm |
