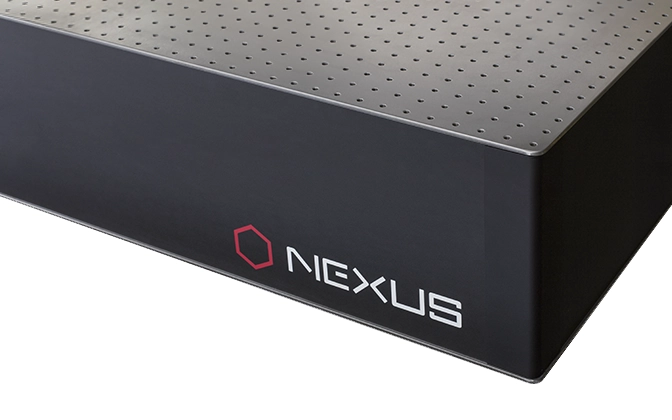

Nexus Optical Tables, 460 mm (18.1") Thick
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
The heaviest Nexus table, 460 mm thick, available from 1.2 m x 2 m up to 1.5 m x 4 m. The extra depth gives the highest stiffness in the range and is intended for large multi-instrument setups where relative tabletop motion must stay at the sub-nanometre level.
Technical Specifications
| Parameter | Value |
|---|---|
| Table thickness | 460 mm (18.1") |
| Flatness of top skin | plus or minus 0.1 mm over any 1 square metre |
| Top and bottom plates | 5 mm thick ferromagnetic stainless steel |
| Maximum relative tabletop motion | less than 0.14 nm |
| Maximum screw depth | 455 mm |
| Specification | Compatible with rigid legs, passive isolators and active isolators |
