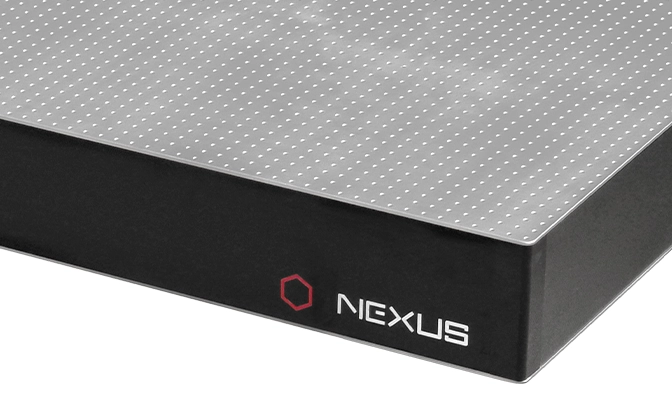

Nexus Optical Tables, 210 mm (8.3") Thick
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
All steel Nexus optical tables with a 210 mm thick honeycomb core, supplied in sizes from 1 m x 2 m up to 1.5 m x 2.5 m. The machined stainless steel top skin is tapped on a 25 mm grid and every table is individually tested for damping performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Table thickness | 210 mm (8.3") |
| Flatness of top skin | plus or minus 0.1 mm over any 1 square metre |
| Top and bottom plates | 5 mm thick ferromagnetic stainless steel |
| Core | high-density plated steel honeycomb, 0.26 mm thick |
| Mounting holes | 1/4"-20 on 1" centres or M6 on 25 mm centres |
| Maximum relative tabletop motion | less than 0.14 nm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
