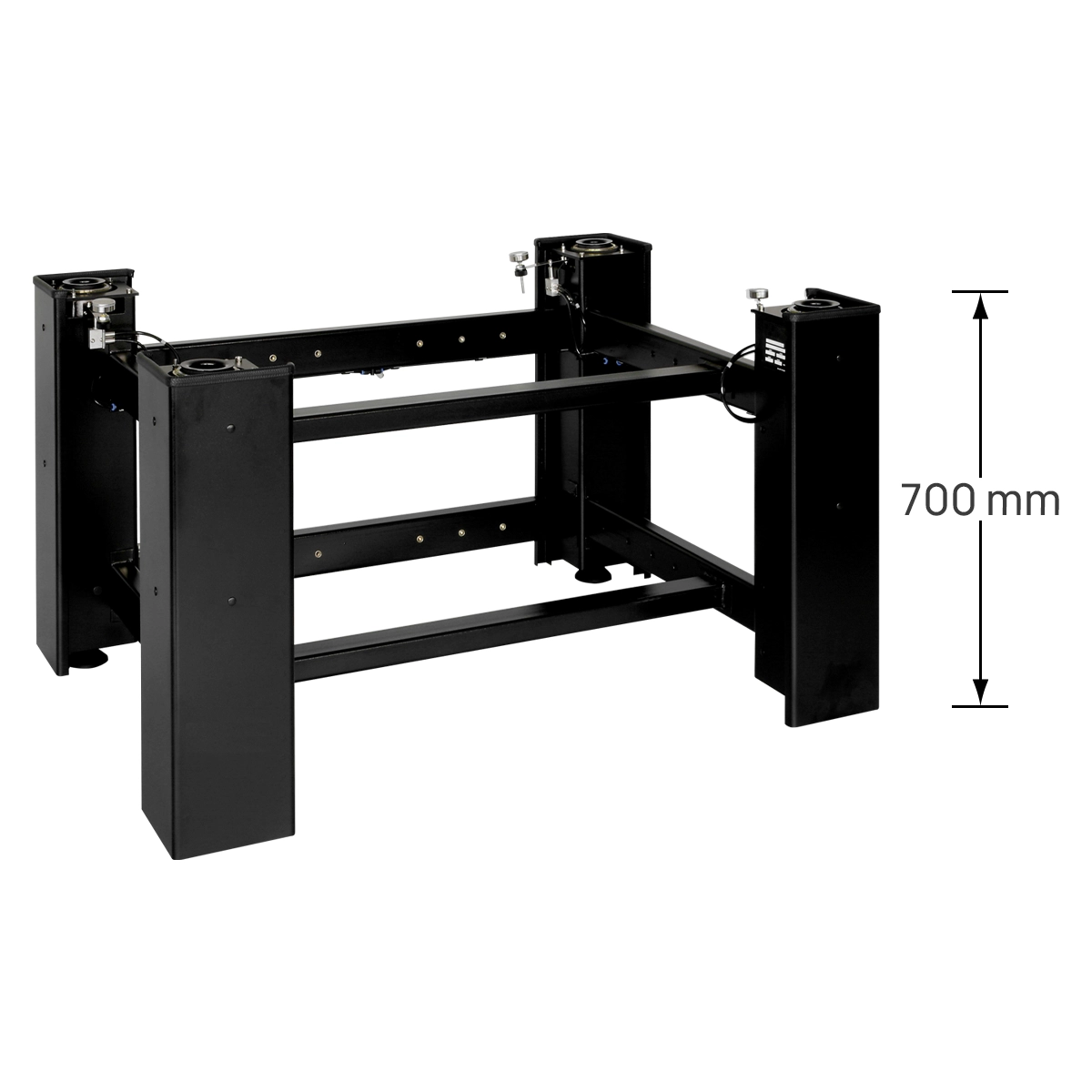

Active Isolation Breadboard Support Frames
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
All steel support frames carrying four air-mounted active isolators, sized for breadboards up to 1200 mm x 1800 mm. They self-level to a repeatability of 0.25 mm and suit interferometry, cell injection and non-contact surface measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Vertical resonant frequency | less than 1.6 Hz |
| Horizontal resonant frequency | less than 1.2 Hz |
| Vertical and horizontal transmissibility at 10 Hz | -34 dB (98%) |
| Load capacity | 700 kg (1545 lbs) |
| Frame heights | 700 mm (27.5") or 800 mm (31.5") |
| Self-levelling repeatability | plus or minus 0.25 mm |
