Passive Benchtop Isolation Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Benchtop isolation for breadboards and instruments, covering pneumatic IsoPlate platforms, bolt-on pneumatic isolator feet and sorbothane feet. They are intended for temporary setups and moderately vibration-sensitive microscopy and photonics work.
Technical Specifications
| Parameter | Value |
|---|---|

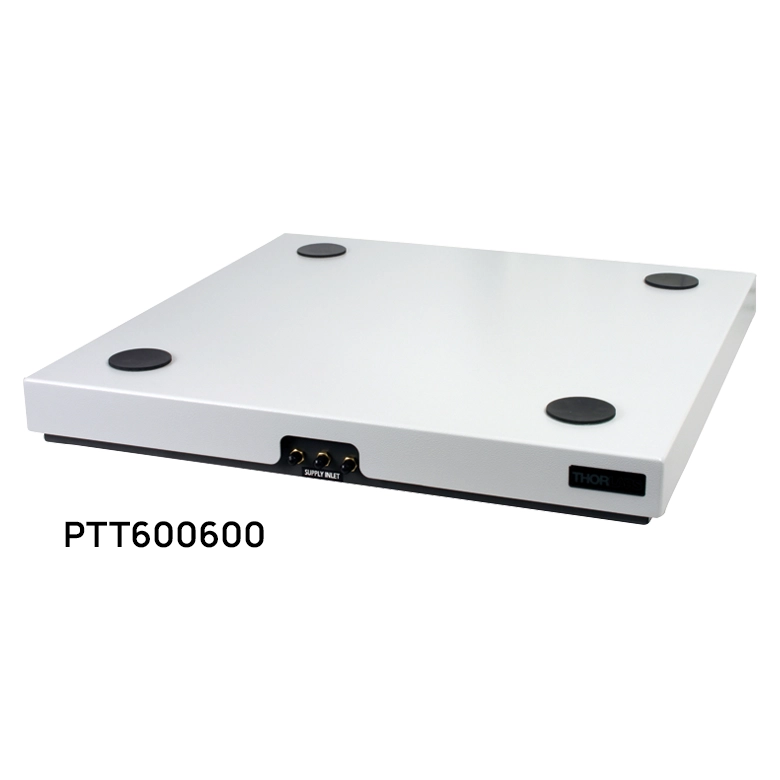

| Specification | IsoPlate systems use four inflated cushions built into a heavy-duty support plate |
| Specification | Passive isolation mounts supplied as a set of four pneumatic feet |
| Specification | Sorbothane vibration isolating feet in several load ratings |
| Specification | Maximum load capacities for the sorbothane feet start at 6 lbs (2.7 kg) |
| Specification | Suitable for breadboards, small optical tables and heavy instruments |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
