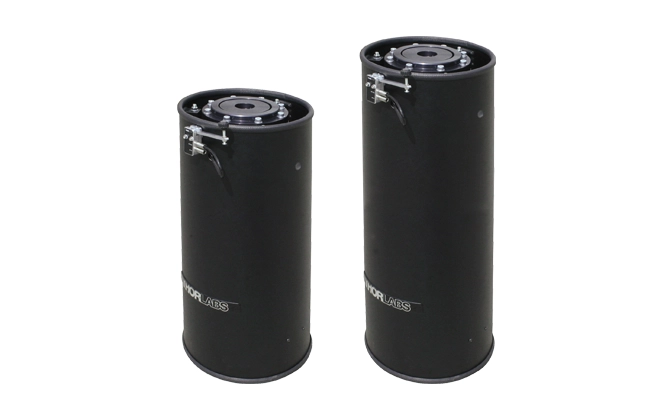

Optical Table Supports: Active Vibration Isolation
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Self-levelling pneumatic supports that isolate an optical table in both the vertical and horizontal axes from about 3 Hz upwards. The very low resonant frequency suits interferometry, nanopositioning and high resolution microscopy.
Technical Specifications
| Parameter | Value |
|---|---|
| Vertical resonant frequency | 1.35 Hz |
| Horizontal resonant frequency | 1.0 Hz |
| Vertical transmissibility at 10 Hz | -32.5 dB (97.5% isolation) |
| Horizontal transmissibility at 10 Hz | -30 dB (97% isolation) |
| Maximum load capacity, set of four | 2500 kg (5500 lbs) |
| Leg heights | 450 mm, 600 mm and 700 mm |
