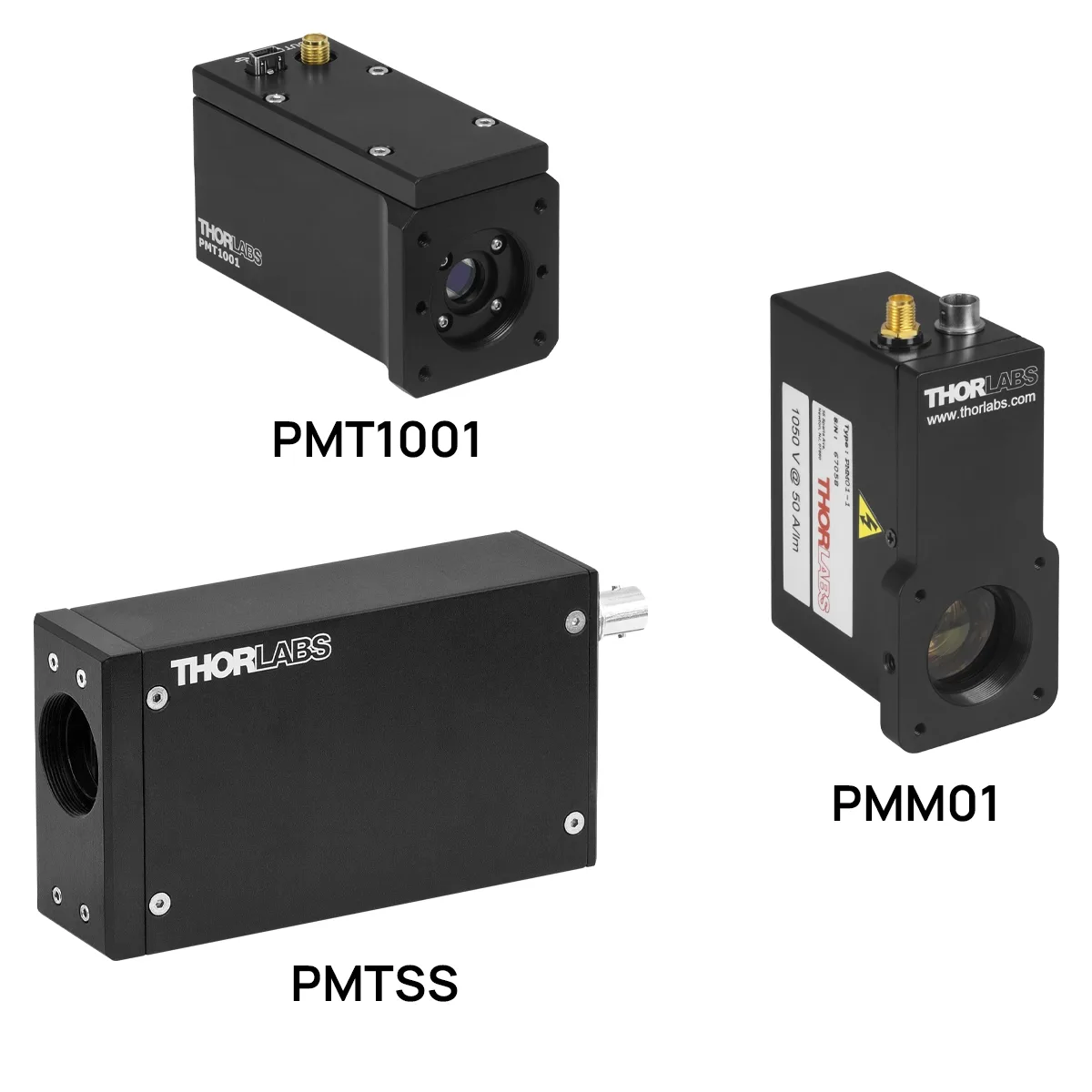

Photomultiplier Modules (PMT and PMM Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Photomultiplier modules with bialkali, multialkali or GaAsP photocathodes for detecting faint optical signals. Their large active areas suit divergent light, and SM1 or C-Mount threading lets filters and lens tubes attach directly.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength coverage | 185 to 920 nm across the range |
| Specification | Typical radiant sensitivities from 51 mA/W to more than 189 mA/W |
| PMTSS gain | greater than 1.0 x 107 |
| Specification | Photocathode active areas up to 22 mm diameter |
| Specification | Dark current from 2 nA typical depending on model |
| Specification | SM1 (1.035"-40) or C-Mount threading, 30 mm cage taps, post and table mounting |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
