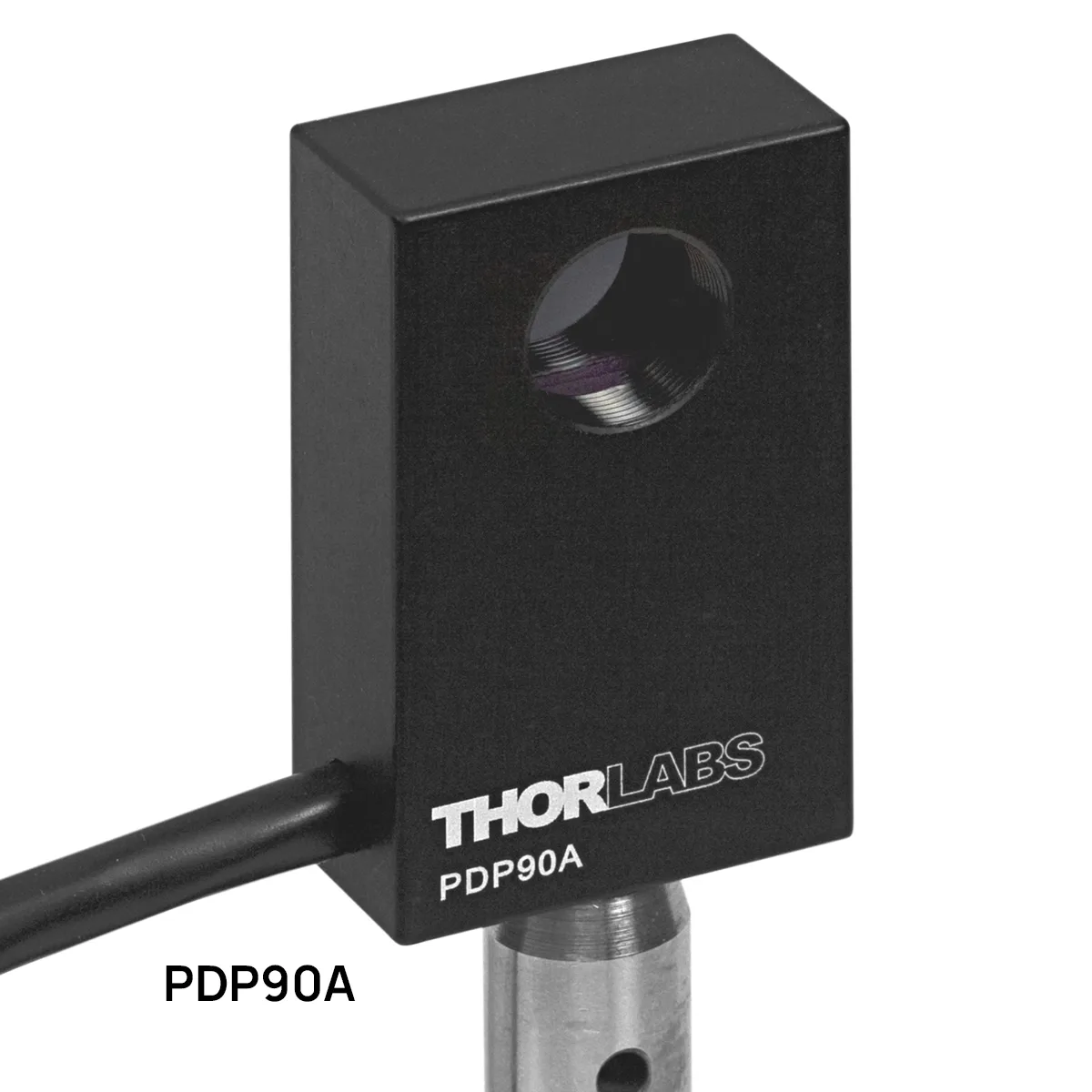

Position-Sensing Detectors (PDP and PDQ Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Detectors that report the position of an incident beam rather than just its power. The lateral effect PDP90A is insensitive to beam shape, while the segmented quadrant models suit automatic alignment and beam stabilisation loops.
Technical Specifications
| Parameter | Value |
|---|---|
| PDP90A wavelength range | 320 to 1100 nm, resolution 0.75 micrometres |
| PDP90A sensor size | 9 mm x 9 mm, bandwidth 15 kHz |
| PDQ80A | 400 to 1050 nm, 7.8 mm diameter sensor, 150 kHz bandwidth |
| PDQ30C | 1000 to 1700 nm InGaAs, 3.0 mm diameter sensor |
| Housing dimensions | 50.8 mm x 30.5 mm x 16.5 mm |
| Specification | Compatible with SM05 (0.535"-40) lens tubes |
