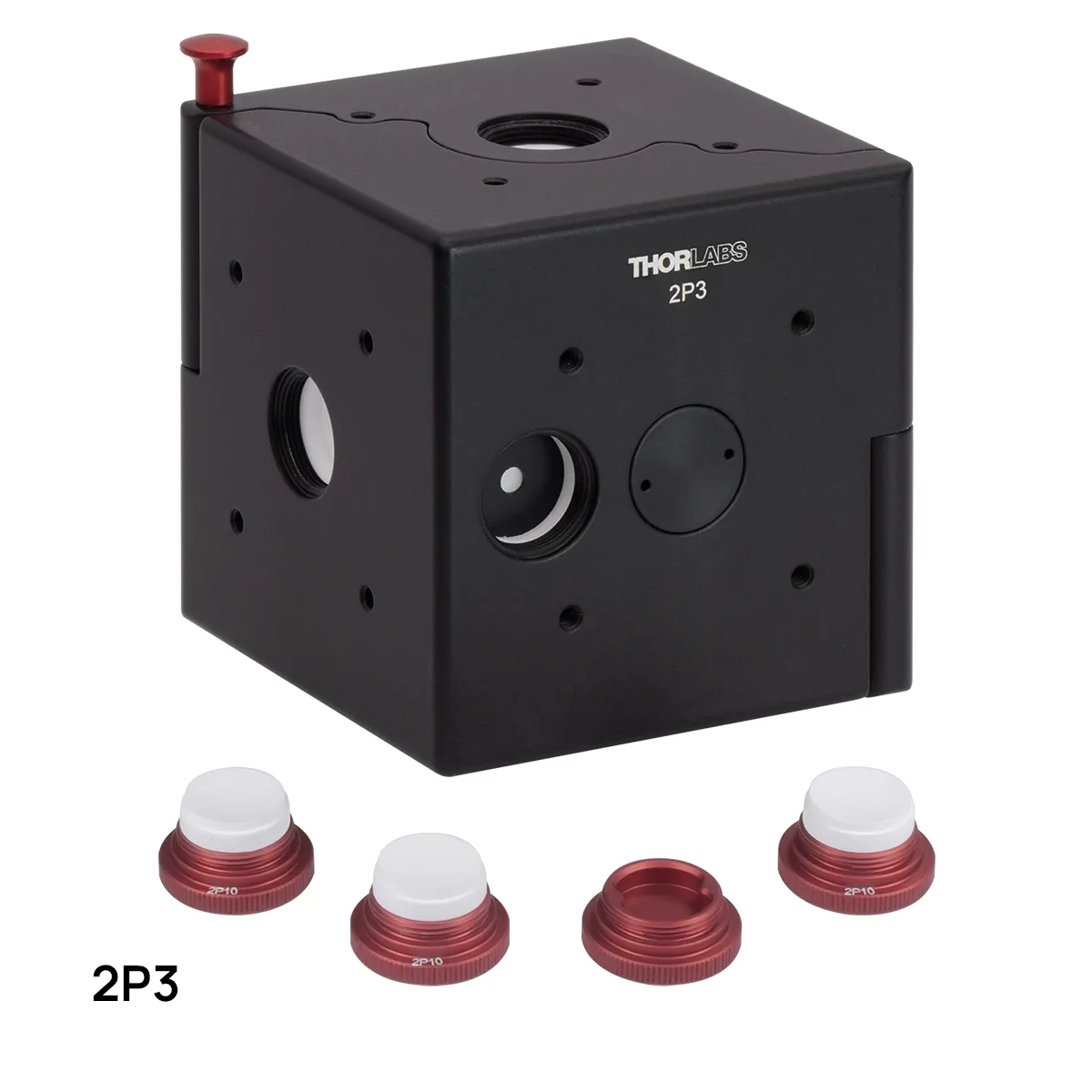

General-Purpose Ø50 mm Integrating Spheres (2P Series)
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Integrating spheres in black anodised aluminium that spread incoming light evenly by multiple internal reflections. They are used for laser power, flux, reflectance and radiance measurements, and take Thorlabs SM05PD photodiodes directly.
Technical Specifications
| Parameter | Value |
|---|---|
| Sphere diameter | 50 mm, wavelength range 250 nm to 2500 nm |
| Typical reflectance | greater than 94% from 250 to 2500 nm, about 99% from 350 to 1500 nm |
| Specification | Three or four SM05 threaded input ports of 11.5 mm diameter |
| Detector port | 3 mm diameter with SM05 (0.535"-40) thread |
| Laser damage threshold | 7 J per square centimetre pulsed, 2 kW per square centimetre CW |
| Dimensions | 63.0 mm x 63.0 mm x 77.0 mm, weight 350 g |
