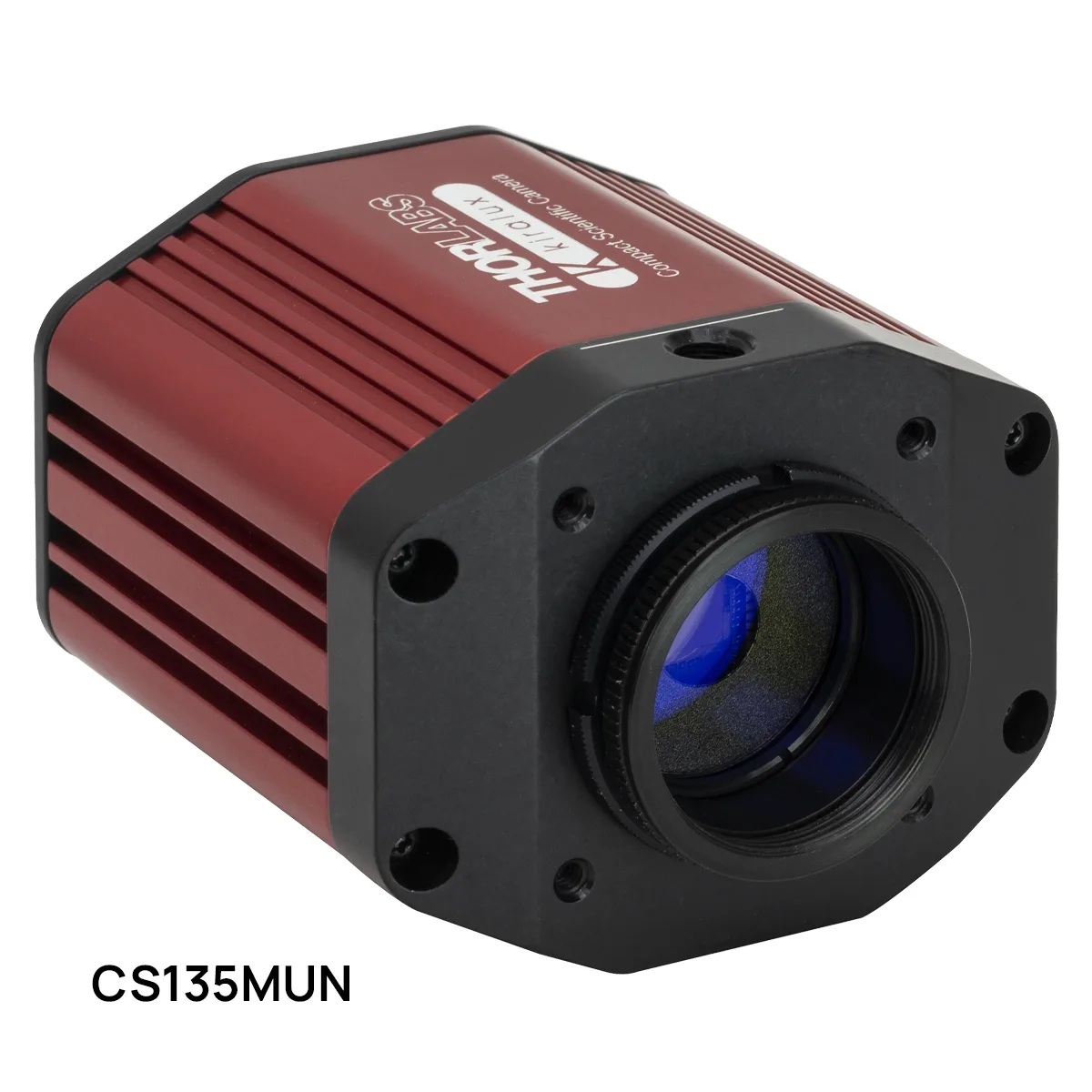

Kiralux CMOS Compact Scientific Cameras
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A family of global shutter CMOS cameras from 1.3 to 12.3 megapixels in monochrome, colour and NIR-enhanced versions. Passively cooled and thermoelectrically cooled models are offered, all with a USB 3.0 interface and cage system compatibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor options | 1.3 MP, 2.3 MP, 5.0 MP, 8.9 MP and 12.3 MP |
| CS135MU | 1280 x 1024 pixels, 4.8 micrometre pixels, 165.5 fps full sensor |
| CS235MU | 1920 x 1200 pixels, 5.86 micrometre pixels, 39.7 fps full sensor |
| Read noise | less than 7.0 electrons RMS on the CS135 and CS235 |
| Dynamic range | up to 75 dB on the CS235 series |
| Specification | Global shutter, triggered and bulb exposure modes, USB 3.0 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
