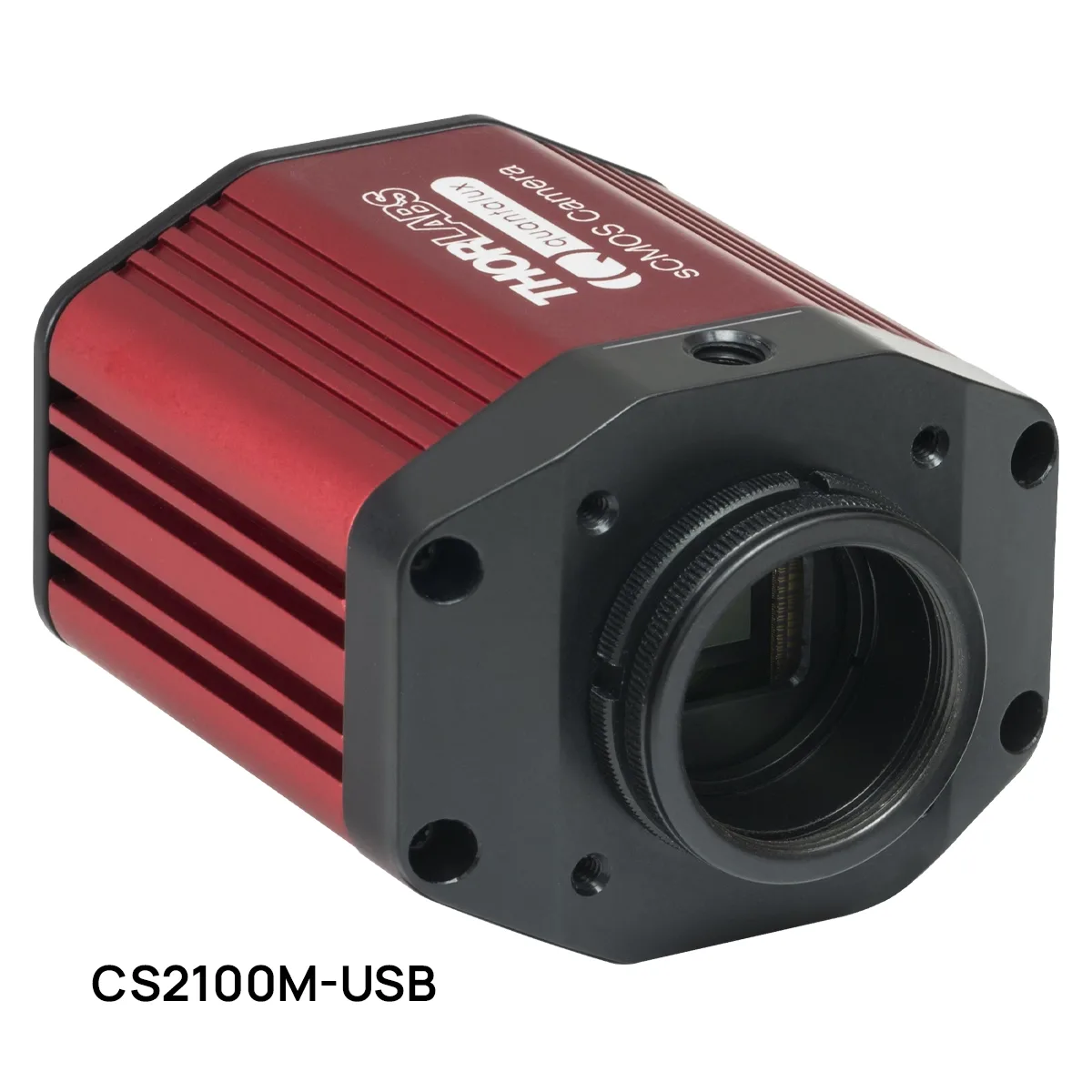

Quantalux 2.1 MP sCMOS Scientific Cameras
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Monochrome scientific CMOS cameras built for low light imaging, combining sub-electron median read noise with high dynamic range. They are used for fluorescence microscopy, quantum dot imaging and multispectral work, in passively or actively cooled packages.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1920 x 1080 pixels, 5.04 micrometre pixels, 2/3 inch format |
| Read noise | less than 1 electron median RMS |
| Peak quantum efficiency | 61% at 600 nm |
| Maximum frame rate | 50 fps at full sensor |
| Dynamic range | up to 87 dB with 23 000 electron full well |
| ADC resolution | 16 bit; C-Mount (1.000"-32) lens mount |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
