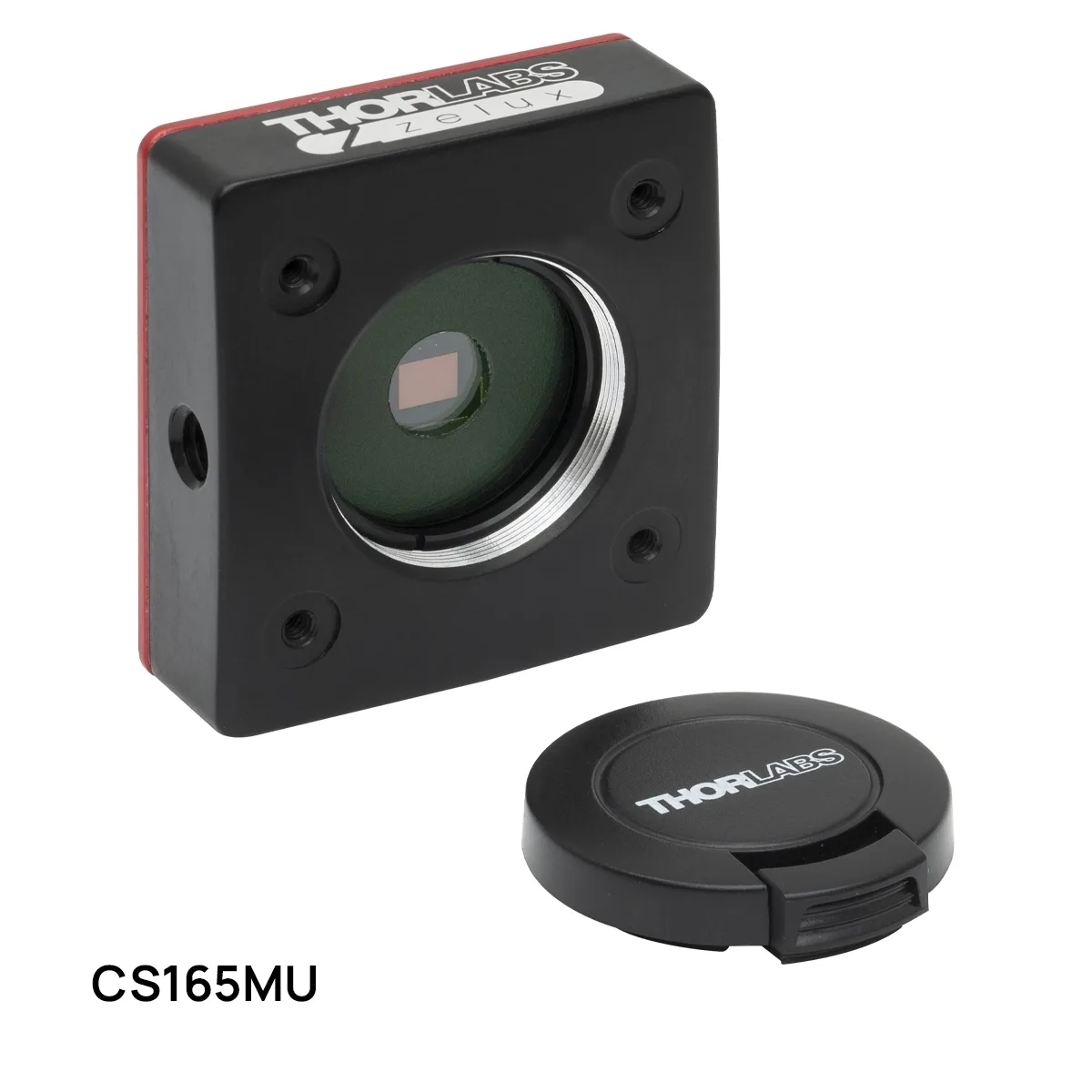

Zelux 1.6 MP CMOS Compact Scientific Cameras
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Very small scientific cameras with a 1.6 megapixel global shutter CMOS sensor, in monochrome and colour. They connect over USB 3.0, thread directly into SM1 lens tubes and 30 mm cage systems, and ship with ThorImageCAM software and an SDK.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | 1440 x 1080 pixels, 3.45 micrometre square pixels, 1/2.9 inch format |
| Read noise | less than 4.0 electrons RMS |
| Full well capacity | 11 000 electrons or more |
| Dynamic range | up to 69 dB; ADC resolution 10 bits |
| Exposure time | 0.040 ms to 26843 ms |
| Housing | 0.59" x 1.72" x 1.86" with internal SM1 (1.035"-40) aperture |
