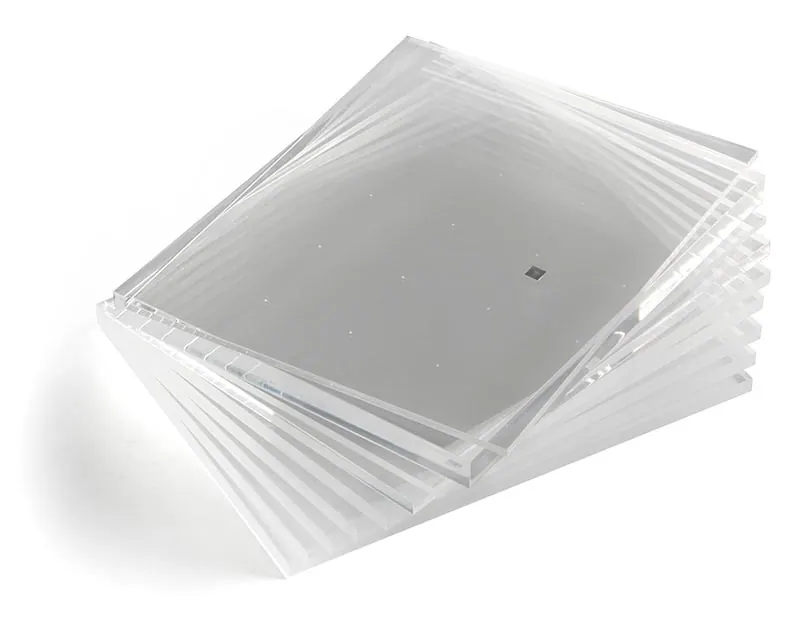

PIXMAM 3D
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A routine image quality phantom for digital breast tomosynthesis. It adds a plate holding twenty five embedded spheres for the Z resolution test to the standard PIXMAM stack, so geometric distortion and image resolution can also be checked.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 1 x 300 x 240 x 5 mm plate with 25 embedded spheres of 1 mm diameter for Z resolution, also available separately |
| Specification | 1 x 300 x 240 x 20 mm plate with embedded 99.99% Al foil, 0.20 x 10 x 10 mm |
| Specification | Plus 1 x 5 mm, 1 x 10 mm and 2 x 20 mm PMMA plates, all 300 x 240 mm |
| Specification | All parts produced to a 1% thickness tolerance |
| Specification | Tests AEC, detector homogeneity, geometric distortion, SNR, CNR, image resolution and Z resolution |
| Specification | Conforms to the EUREF protocol for the quality control of digital breast tomosynthesis |
