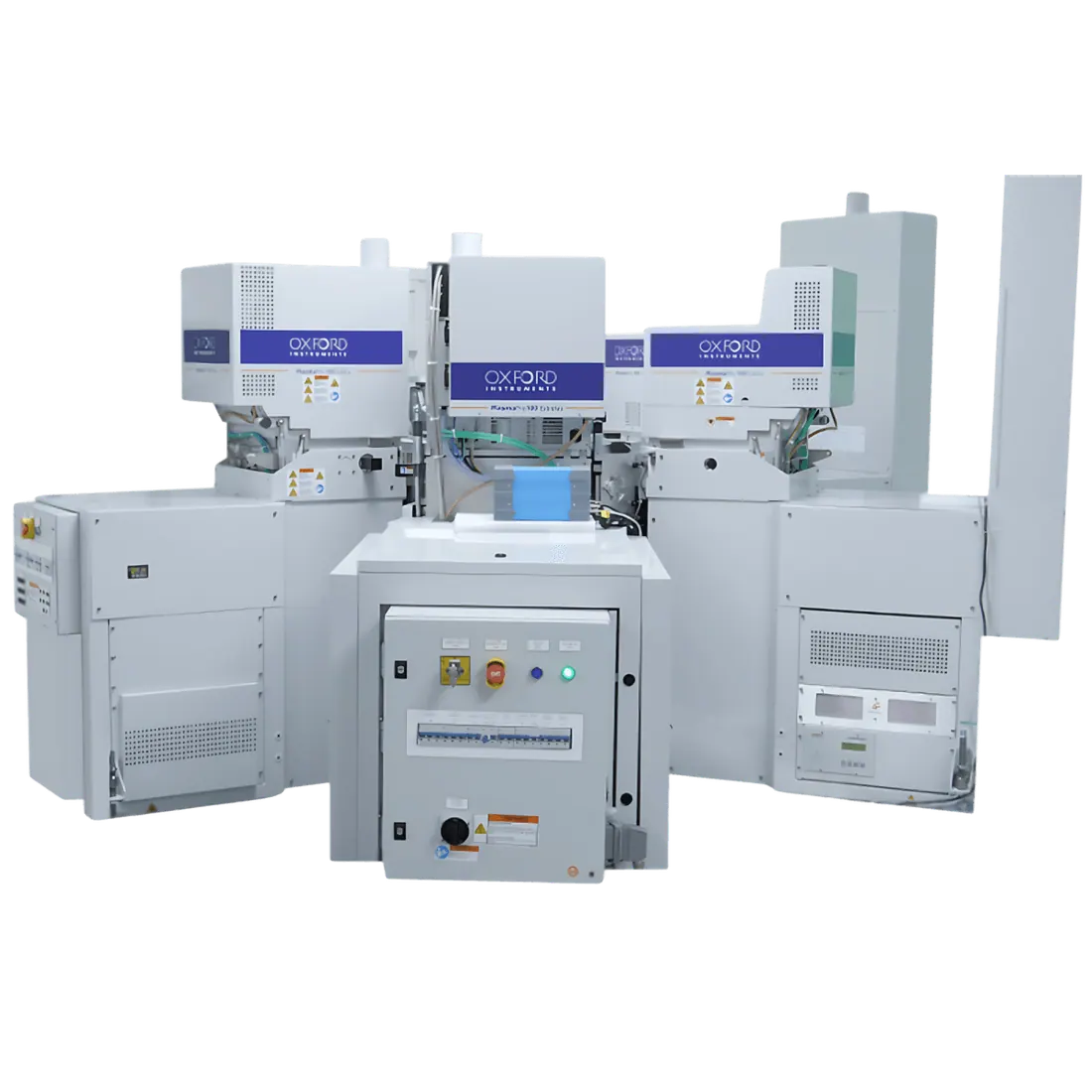

PlasmaPro 100 Estrelas DRIE
Brand: Oxford Instruments | Category: Nanotechnology
The PlasmaPro 100 Estrelas creates deep, steep sided trenches and vias in silicon. It runs both Bosch and cryogenic processes in the same chamber, covering high rate cavity etches, high aspect ratio features and tapered vias for MEMS and advanced packaging.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Compatible with 50 mm to 200 mm substrates |
| Specification | Bosch and cryogenic processes run in the same chamber |
| Cryogenic process temperature | approximately -110 °C |
| Specification | Mechanical or electrostatic clamping |
| Specification | Heated liners and top plate |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
