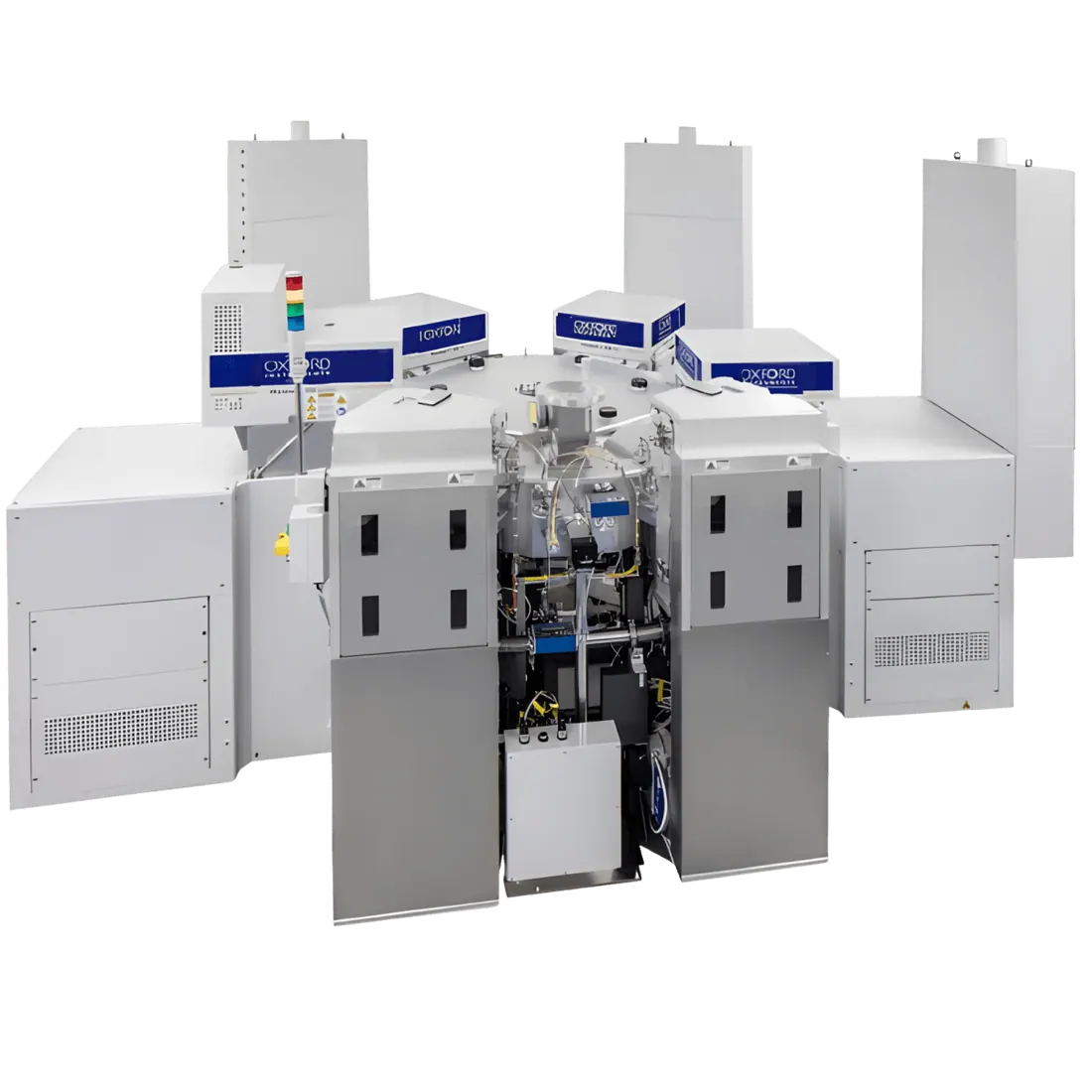

PlasmaPro 100 PECVD
Brand: Oxford Instruments | Category: Nanotechnology
The PlasmaPro 100 PECVD deposits dielectric and silicon based films with control of refractive index, stress, electrical properties and wet chemical etch rate. Dual frequency power applied to the showerhead electrode allows stress control and film densification.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Compatible with wafer sizes up to 200 mm |
| Resistive heated electrodes | up to 400 °C or 1200 °C |
| Dual frequency power | 13.56 MHz and 100 kHz applied to the upper electrode |
| Specification | Clustering of up to 4 process modules |
| Specification | Precursor delivery heated up to 70 °C |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Oxford Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
