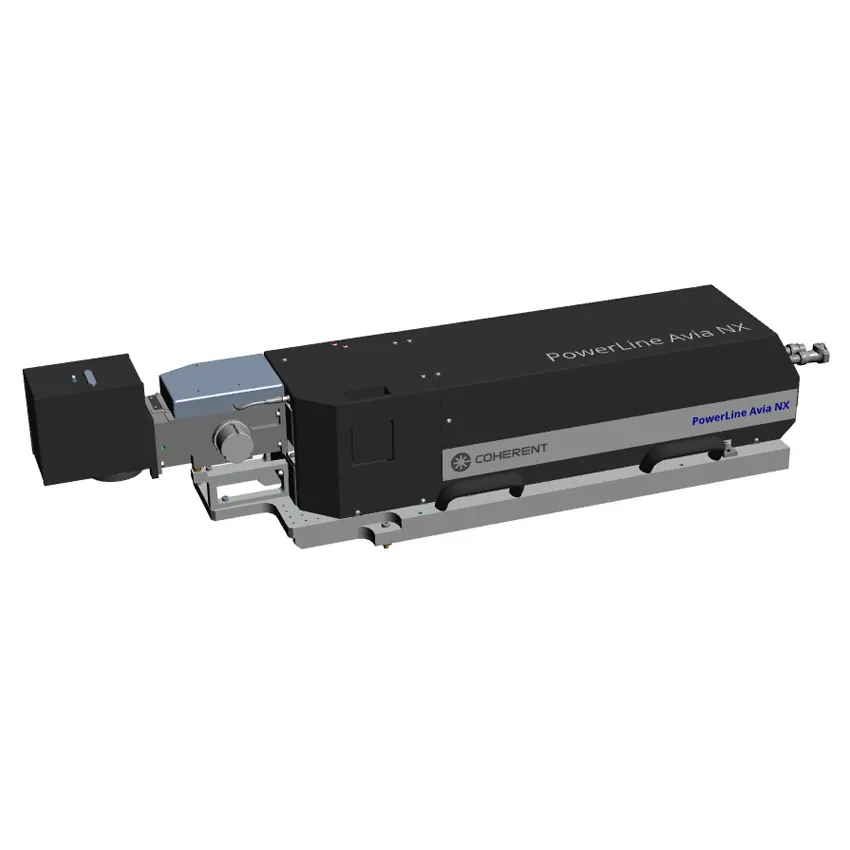

PowerLine AVIA NX
Brand: Coherent | Category: Scientific & Laboratory Equipment
PowerLine AVIA NX is an ultraviolet laser cutter for integration into existing handling systems for cutting, drilling and scribing wafers, SIPs, packages and PCBs. It pairs a 355 nm AVIA laser with a galvanometer scanner, optics and software that can cover a 300 mm wafer.
Technical Specifications
| Parameter | Value |
|---|---|
| AVIA NX 20-355 | 20 W, 1 to 250 kHz, pulse width <30 ns |
| AVIA NX 40-355 | 40 W, 1 to 300 kHz, pulse width <35 ns |
| Pulse-to-pulse stability | <5 % (rms) |
| Scanner coverage | up to a 300 mm wafer or PCB |
| Options | fast-focusing module, internal power meter, through-the-lens alignment |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
