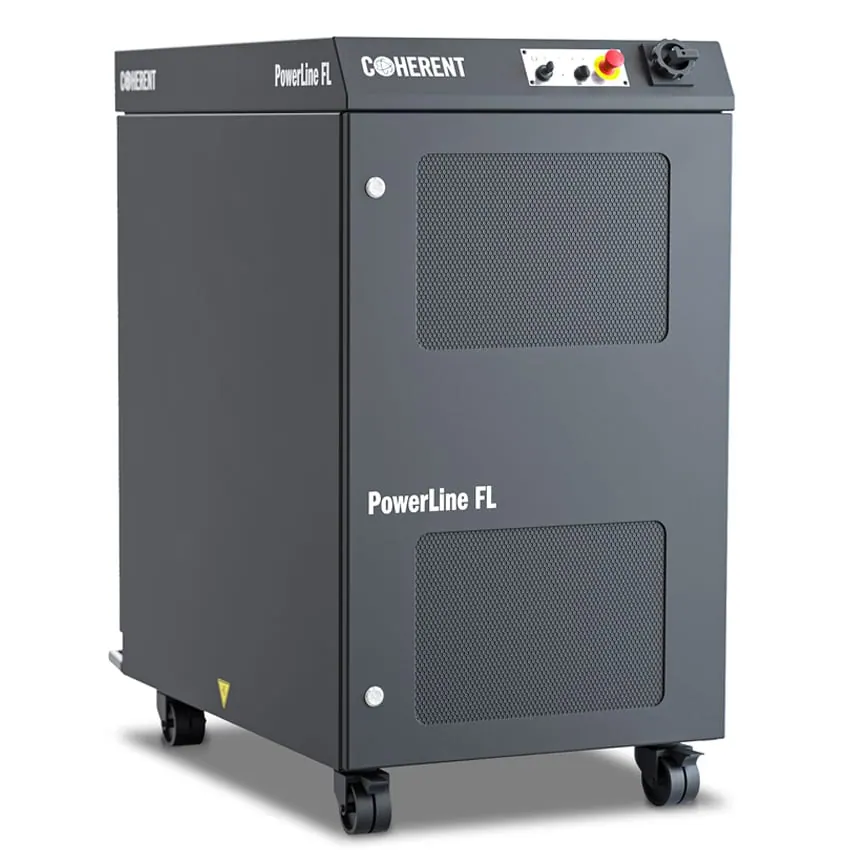

PowerLine FL
Brand: Coherent | Category: Scientific & Laboratory Equipment
PowerLine FL are single mode fibre laser sub-systems with optional focusing heads and galvo scanners for welding or cutting. Output runs from 200 W to 1500 W, with CW and pulsed operation from single shot to 5 MHz and working areas from 55 x 55 mm to 260 x 260 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | PowerLine FL 200, 400, 600, 1000 and 1500, single-mode |
| PowerLine FL 150 P | 150 W pulsed, 250 W CW, 1500 W maximum peak power |
| PowerLine FL 300 P | 300 W pulsed, 300 W CW, 3000 W maximum peak power |
| Output | CW and pulsed, single shot to 5 MHz |
| Working areas | 55 x 55 mm to 260 x 260 mm, larger on request |
| Options | SmartWeld+ optics, SmartSense+ process monitoring |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
