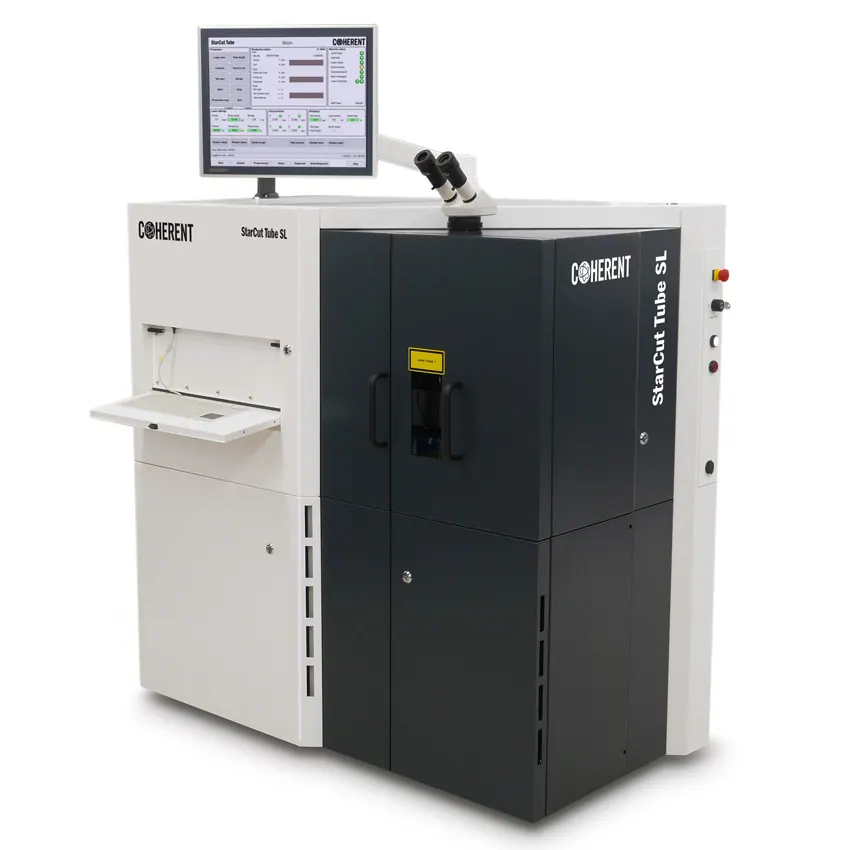

StarCut Tube
Brand: Coherent | Category: Scientific & Laboratory Equipment
StarCut Tube are fully automated multi-axis CNC laser cutting machines for tubes and flat materials, including catheter shafts, stents and hypotubes. Contour cutting accuracy is better than +/-5 um. The L 600 model takes a fibre laser, an ultrashort pulse laser or both.
Technical Specifications
| Parameter | Value |
|---|---|
| Infrared laser options | 60 W femtosecond USP laser, 100 W or 200 W fiber laser |
| Contour cutting accuracy | better than +/- 5 um |
| Maximum tube diameter | 30 mm |
| Rotary axis speed | 600 rev/min standard, 1500 rev/min optional |
| Travel range, StarCut Tube L 600 | X 300 or 600 mm, Y 75 mm, Z 40 mm |
| Overall dimensions (D x W x H) | 762 x 2625 x 1430 mm (L 600), 700 x 1340 x 1410 mm (SL) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
