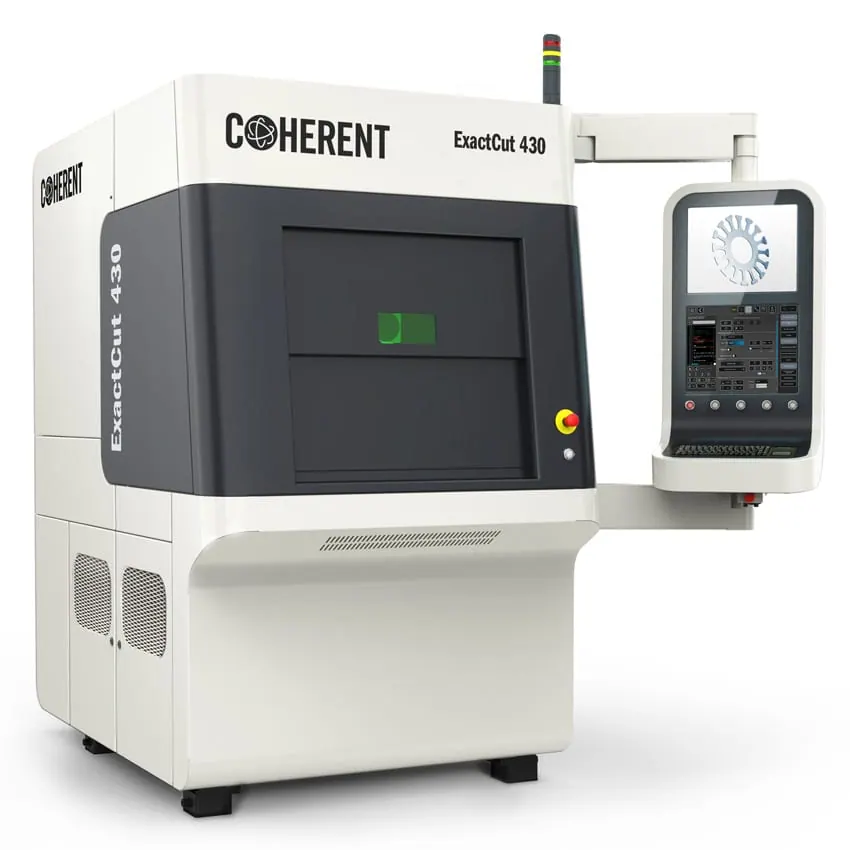

ExactCut 430
Brand: Coherent | Category: Scientific & Laboratory Equipment
The ExactCut 430 is a precision laser cutting system for automated processing of thin and thick metals and alloys, plus brittle materials such as sapphire, PCD and ceramics. It runs a pulsed infrared fibre laser at 150 W or 300 W and holds XY positioning accuracy of +/-0.002 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Laser type | pulsed infrared fiber laser |
| Laser power | 150 W or 300 W |
| Peak power | 1.5 kW or 3.0 kW |
| XY positioning accuracy | +/-0.002 mm, repeatability +/-0.001 mm |
| XY travel range | 400 x 500 mm |
| Dimensions (L x W x H) | 1900 mm x 2200 mm x 2130 mm |
