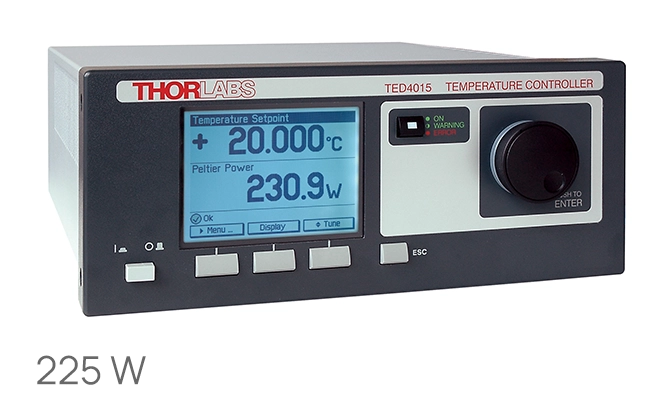

TED4015 225 W TEC Controller
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A high power thermoelectric controller giving up to 15 A and 225 W with digital PID and an automatic tuning function. It supports thermistors, IC sensors and platinum RTDs, and is controlled from the front panel or over a SCPI compliant USB interface.
Technical Specifications
| Parameter | Value |
|---|---|
| TEC current output | -15 A to +15 A, maximum output power 225 W |
| Compliance voltage | 15 V |
| Temperature control range | -55 to 150 degrees C |
| Temperature stability over 24 hours | less than 0.002 degrees C |
| Temperature resolution | 0.001 degrees C |
| Resistance measurement ranges | 100 ohms to 100 kilohms and 1 kilohm to 1 megohm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
