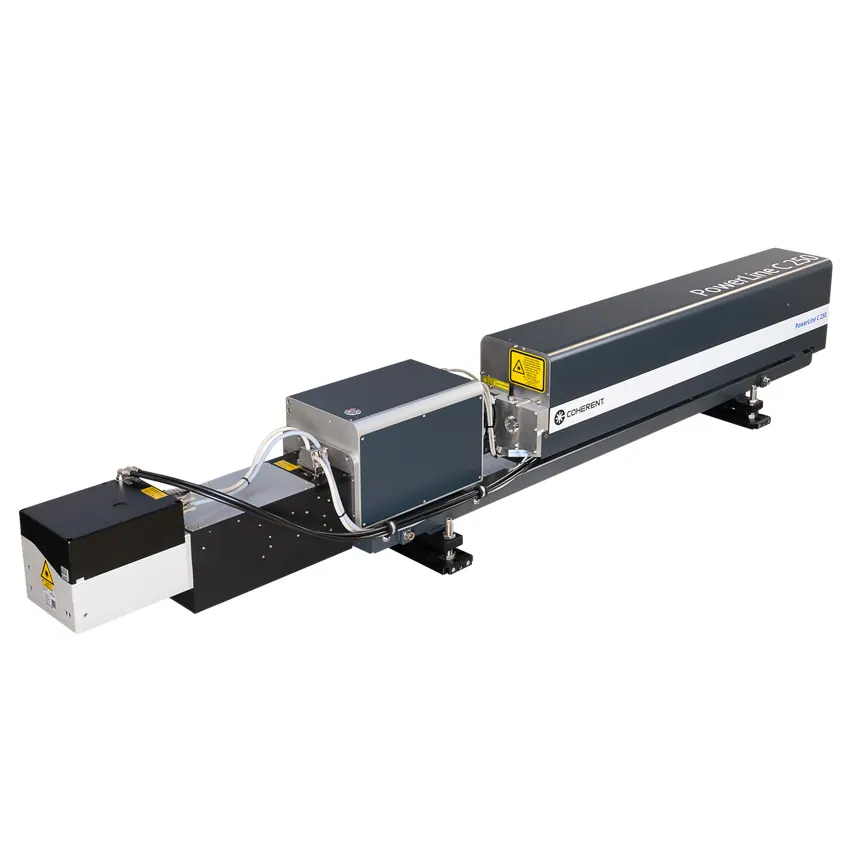

PowerLine C
Brand: Coherent | Category: Scientific & Laboratory Equipment
PowerLine C is a CO2 laser based tool for precision drilling, cutting, scribing, marking and engraving of non-metals including glass and organic materials. Three power levels and three wavelengths are offered, with 2 axis or 3 axis scanner control and StarFlex software.
Technical Specifications
| Parameter | Value |
|---|---|
| PowerLine C 180 | 160 W at 9.3 um, 150 W at 10.25 um, 180 W at 10.6 um |
| PowerLine C 250 | 250 W at 9.3 um, 225 W at 10.25 um, 250 W at 10.6 um |
| PowerLine C 450 | 400 W at 9.3 um, 400 W at 10.25 um, 450 W at 10.6 um |
| Processing area with 2-axes scanner | 70 mm x 70 mm up to 340 mm x 340 mm |
| Processing area with 3-axes scanner | 100 mm x 100 mm up to 1250 mm x 1250 mm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
