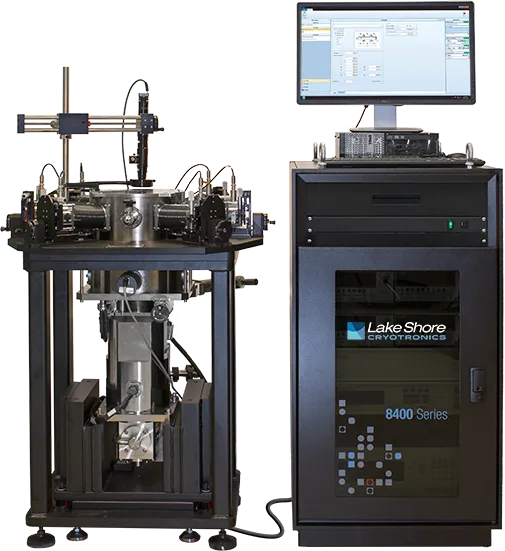

PS-HM-8425 Hall measurement package for the CRX-VF probe station
Brand: Lake Shore | Category: Nanotechnology
The PS-HM-8425 package adds Hall measurement to Lake Shore's CRX-VF cryogenic probe station. It supports DC Hall measurements on wafer-scale materials and structures as a function of temperature and field, and is supplied with a switch matrix, current source, voltmeter and a PC running the 8400 Series HMS software. Van der Pauw, Hall bar and gated Hall bar measurements are all covered, with optional modules for extra probe arms, high resistance work, gate bias voltage and QMSA software.
Manufacturer-listed package; availability to confirm
| Parameter | Value |
|---|---|
| Host station | Lake Shore CRX-VF |
| Wafer size | Up to 51 mm (2 in) |
| DC magnetic field | Up to 2 T |
| Published resistance range | 0.5 mΩ to 100 GΩ on the package page |
| Software | 8400 Series HMS measurement and analysis |
| Measurements | Hall voltage, Hall mobility, resistance and I–V curves |
These figures are for the PS-HM-8425 package page. Lake Shore separately lists the 8400 Series as discontinued, and older probe-station literature gives different resistance limits. Obtain written confirmation of current package availability, replacement options and warranted range before specifying this upgrade. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Material/sample geometry and required measurement range or uncertainty
- Compatible sensors, fixtures, controller and environmental conditions
- Reference materials, calibration, software and installation scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Lake Shore equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
