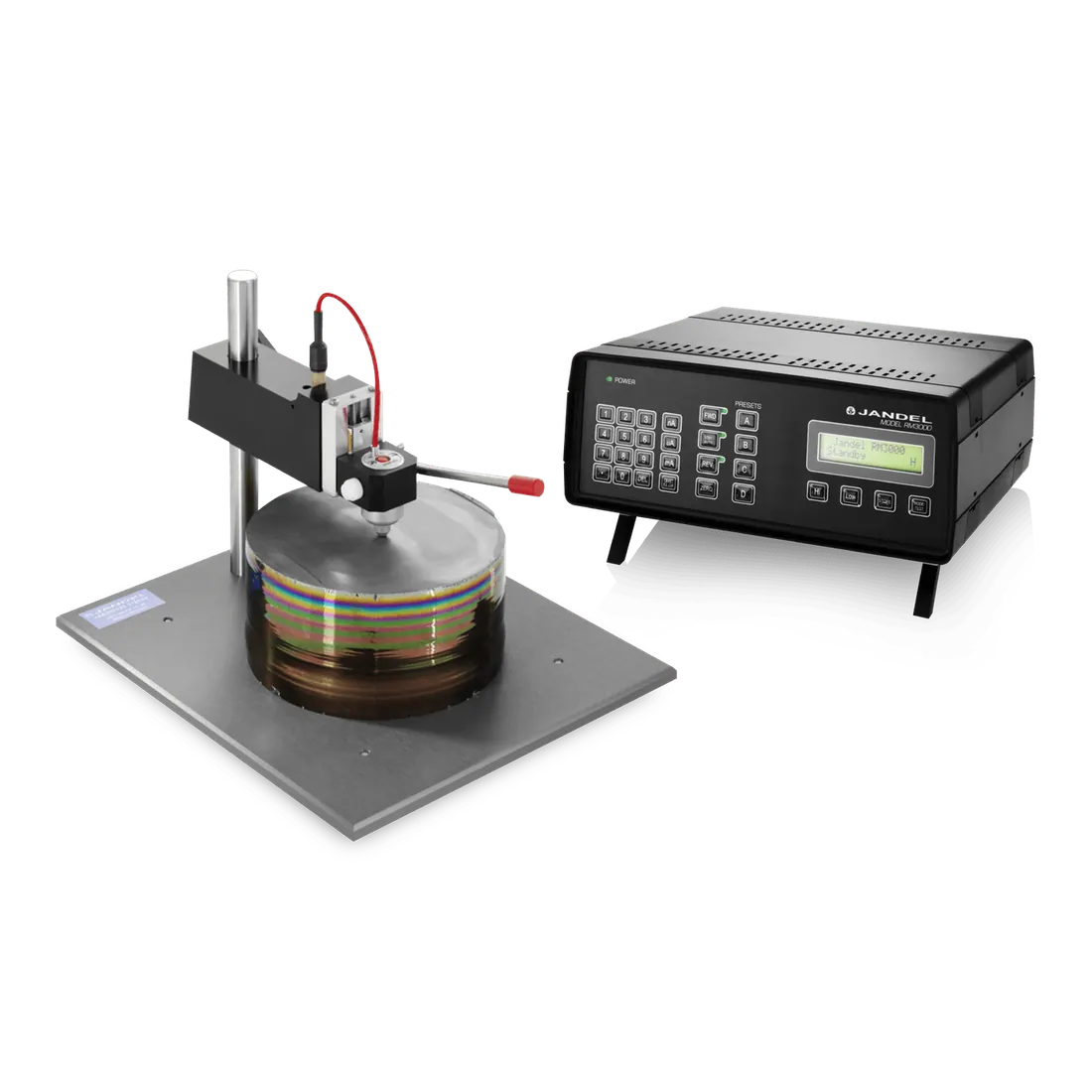

Jandel General Purpose System
Brand: Jandel Engineering | Category: Nanotechnology
The General Purpose System pairs the RM3000+ Test Unit with the Multiheight Probe Stand and is the combination Jandel sells most. The adjustable probe height takes samples from thin layers and wafers up to ingots 250 mm high, with thicker samples accommodated on request.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Combination of the RM3000+ Test Unit and the Multiheight Probe Stand |
| Specification | Measures thin layers and wafers up to ingots 250 mm high |
| Specification | Thicker samples can be accommodated on request |
| Specification | Lever operated probe with switched current leads to prevent sparking |
