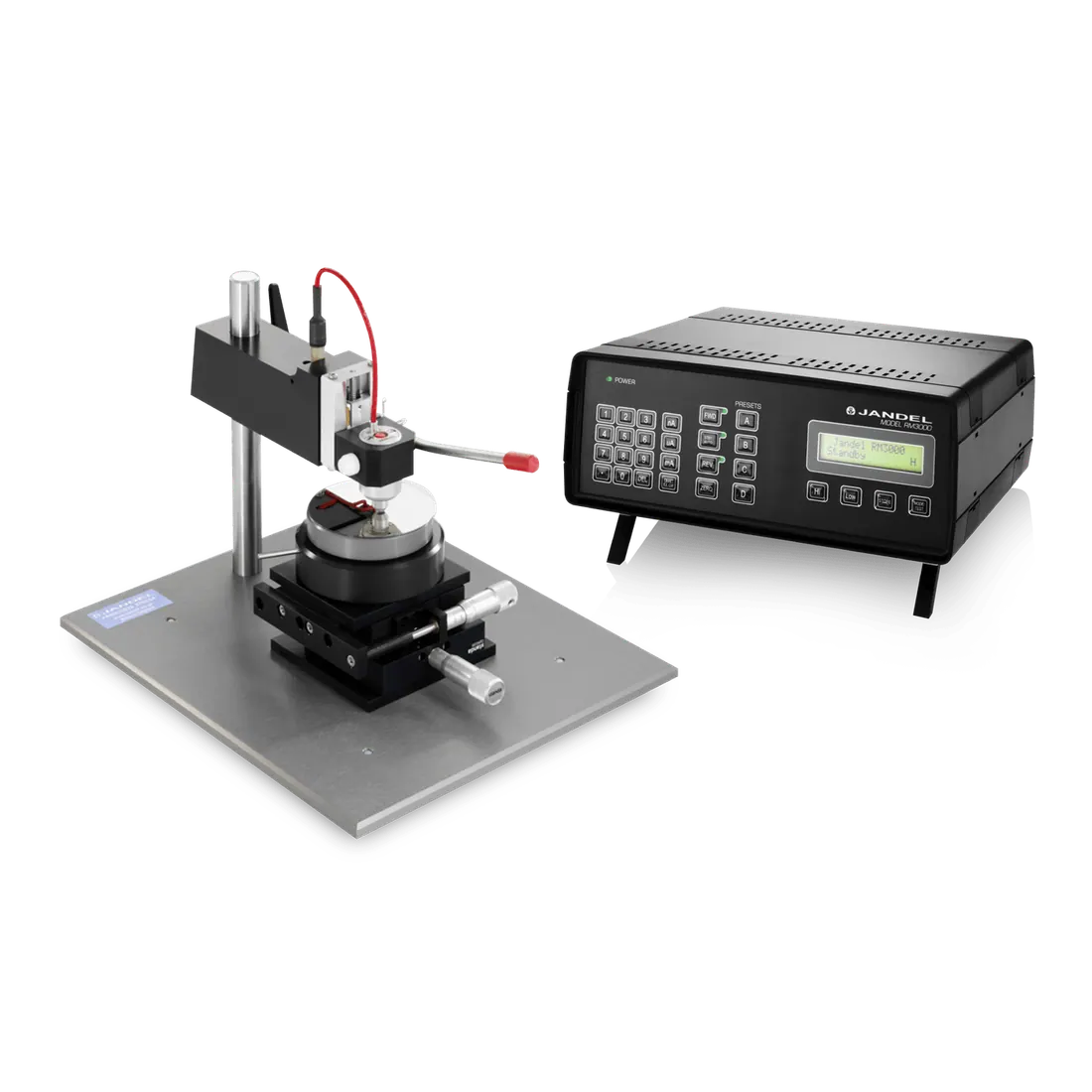

Jandel Multipurpose Four Point Probe System
Brand: Jandel Engineering | Category: Nanotechnology
The Multipurpose System combines the Multiheight Probe Stand and RM3000+ Test Unit with a removable micrometer controlled X-Y table. Small samples such as coated glass slides can be positioned precisely, and with the table removed the stand takes wafers and ingots.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Combination of the Multiheight Probe Stand, RM3000+ Test Unit and removable X-Y microposition table |
| Maximum sample size on the micrometer controlled stage | 76 mm diameter |
| Specification | Base available for samples up to 250 mm diameter, or 300 mm as an option |
| Specification | Accommodates ingots up to 250 mm deep |
| Specification | Optional longer post available for taller samples |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Jandel Engineering equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
