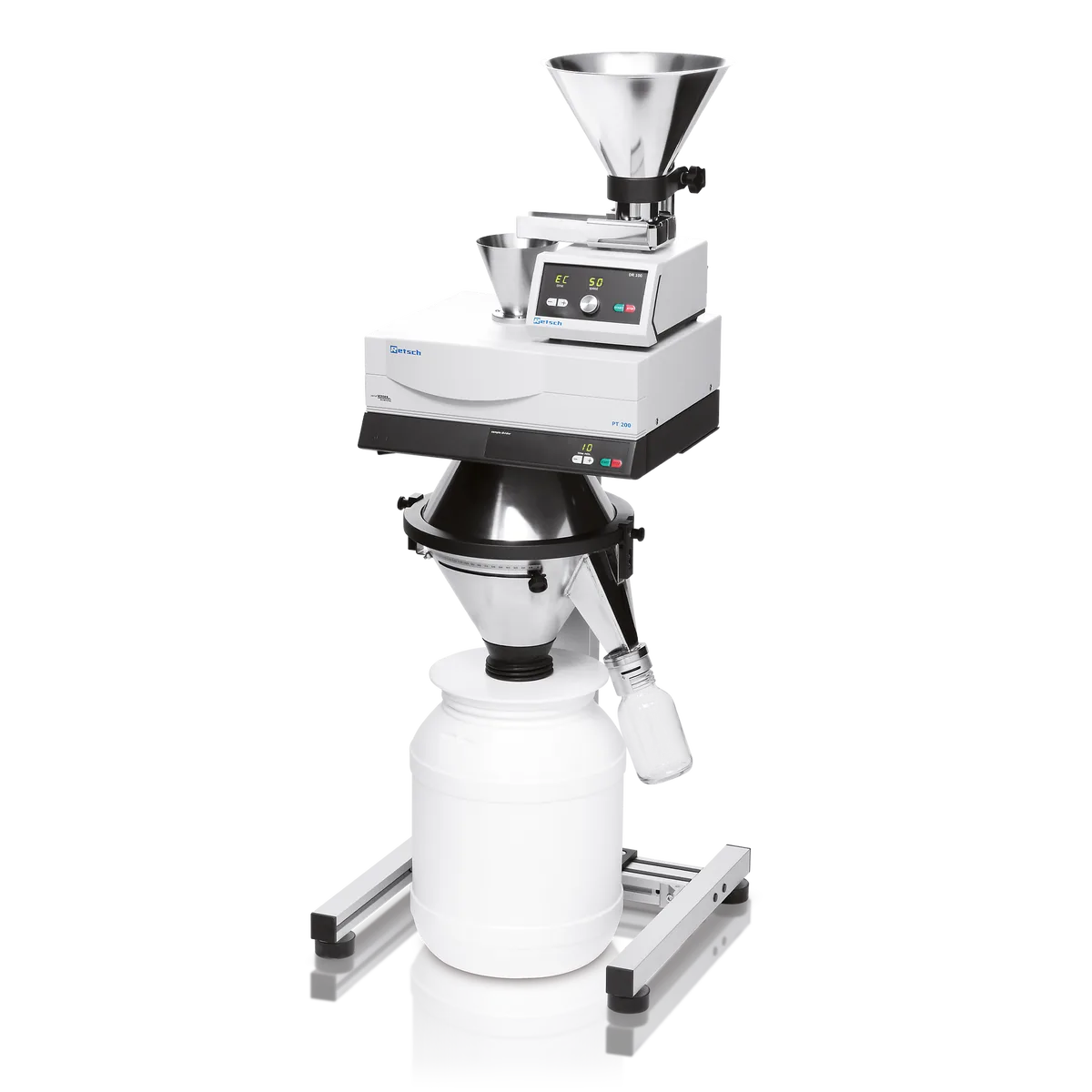

PT 200: Rotating Tube Divider
Brand: Retsch | Category: Scientific & Laboratory Equipment
Rotating tube divider for powdered and granular bulk materials with a feed size up to 10 mm. The dividing ratio is set by the bottom cone fitted, giving one, two or three fractions, which suits laboratories that need a specific split ratio rather than a fixed number of equal parts.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Rotary speed | 50 min-1 |
| Time setting | digital, 1, 3, 5, 10 - 60 min / continuous operation |
| Slot width, continuously adjustable | 0 - 159 mm (1 sample outlet) ; 0 - 110 mm (2 sample outlets) ; 0 - 53 mm (3 sample outlets) |
| Volume of reject collector | 26 l |
| Container volume | 250 ml / 500 ml |
| Electrical supply data | 100-240 V, 50/60Hz |
| Power connection | 1-phase |
| W x H x D | 520 x 1050 x 551 mm / 572mm x 1307 x 551 incl. DR 100 |
| Net weight | ~ 46 kg (incl. DR 100) |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
