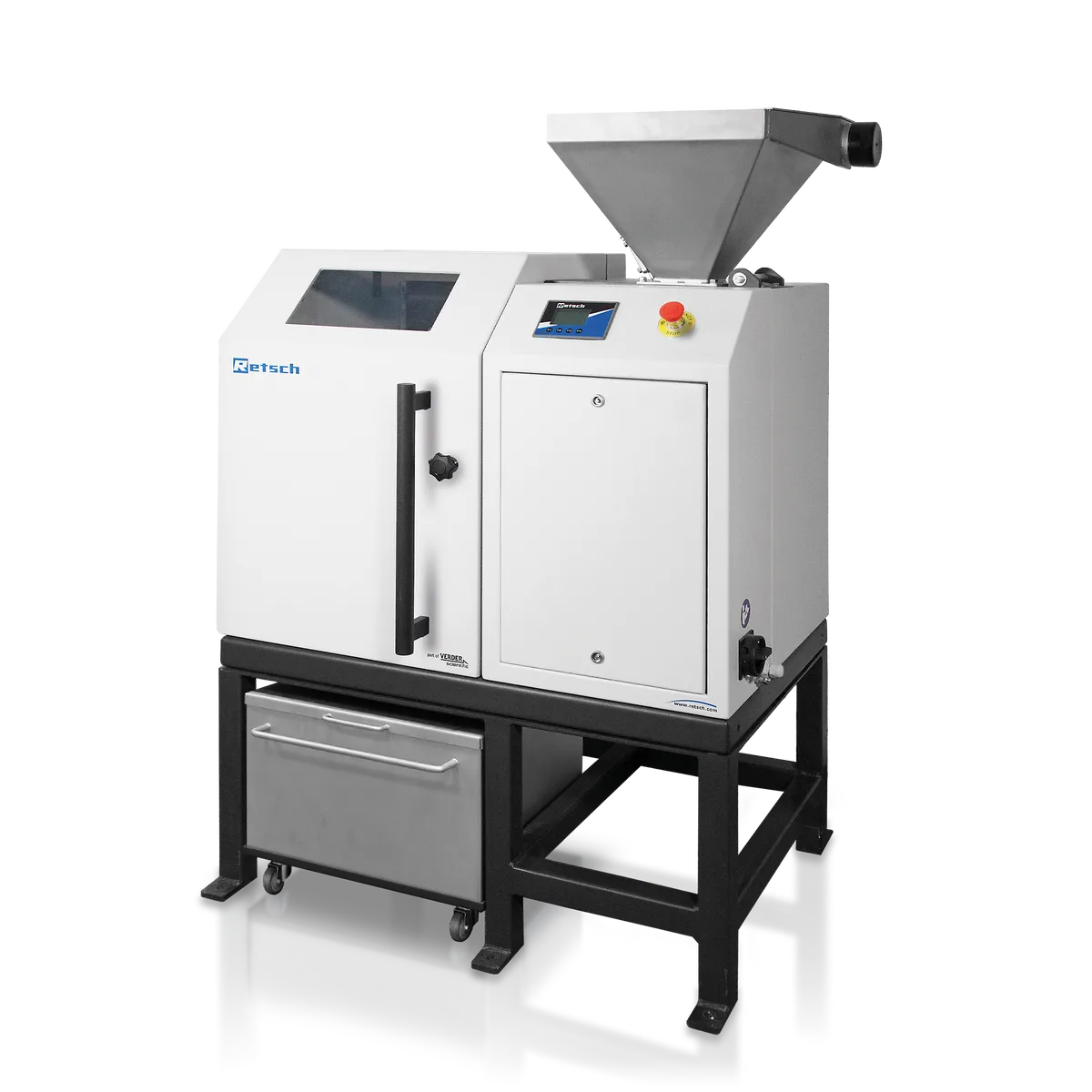

PT 300: Rotating Sample Divider
Brand: Retsch | Category: Scientific & Laboratory Equipment
Rotating sample divider for dust free division and volume reduction of large quantities of powdered or granular bulk material, with a feed size up to 30 mm. It can be set to 4, 6, 8 or 10 divisions, or configured to reject part of the stream, which is how large field samples are cut down to laboratory size.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Rotary speed | 18 - 53 min-1 |
| Volume of reject collector | 70 l |
| Volume of segments for batch wise operation | 30 l configuration: ; 3,000 ml / 3,750 ml / 5,000 / 7,500 ml (depending on dividing module) ; ; 60 l configuration: ; 6,000 ml / 7,500 m l / 10,000 / 15,000 ml (depending on dividing module) |
| Electrical supply data | 100-120 V, 50/60 Hz; 200-240 V, 50/60Hz |
| Power connection | 1-phase |
| Power consumption | 500 VA |
| W x H x D | 30 l configuration: 1180 x1510 x 750 mm ; 60 l configuration: 1180 x1620 x 750 mm |
| Net weight | 30 l configuration: ~ 209 kg (incl. vibratory feeder) ; 60 l configuration: ~ 230 kg (incl. vibratory feeder) |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
