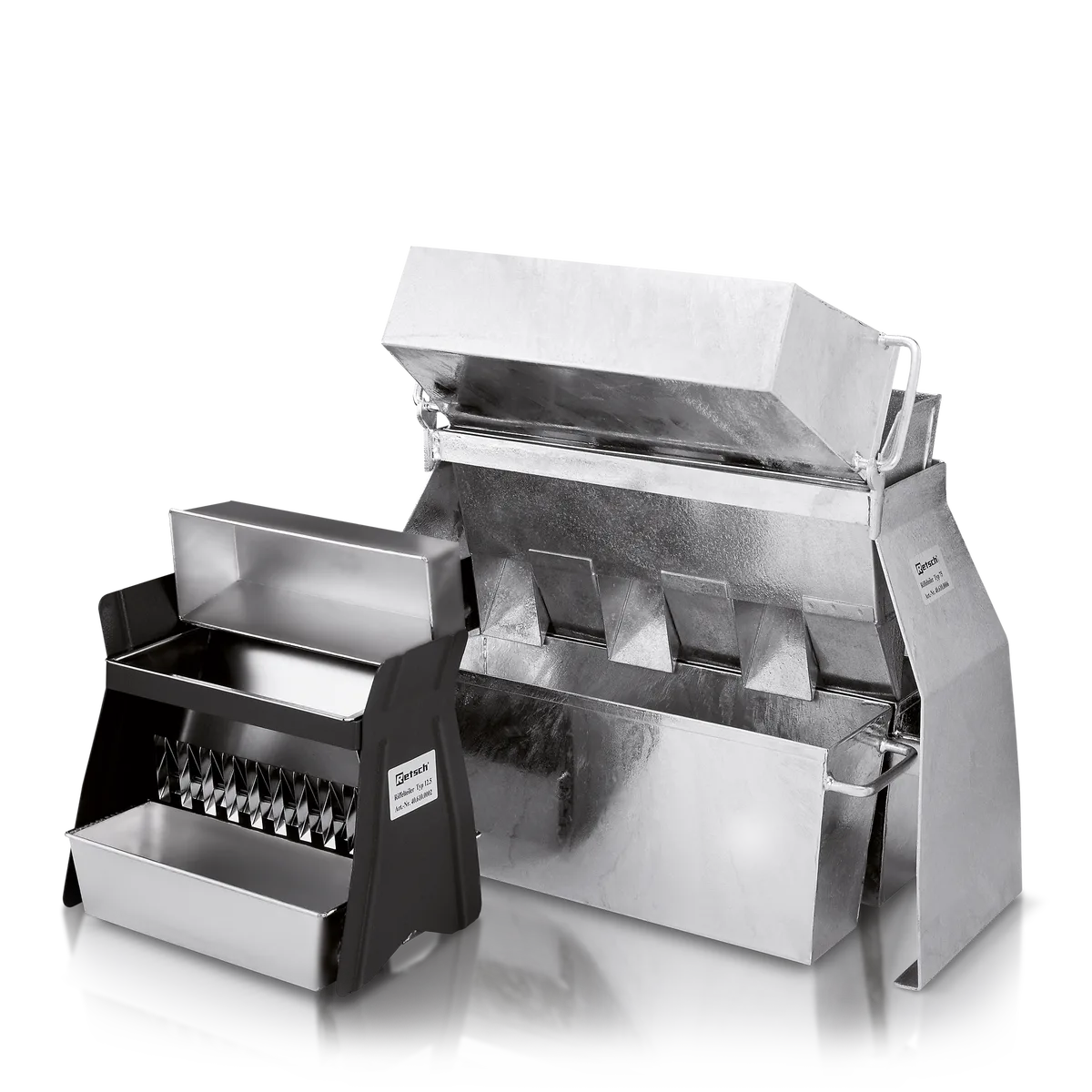

RT 6.5 to RT 75: Sample Splitter
Brand: Retsch | Category: Scientific & Laboratory Equipment
Riffle sample splitters that halve a sample by passing it through alternating chutes, the classic method described in DIN 51701. The series runs from RT 6.5 to RT 75 with slot widths matched to feed sizes from about 4 mm to 50 mm, and requires no power supply.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Slot size | RT 6.5: 6.3 mm ; RT 12.5: 12.5 mm ; RT 25: 25.0 mm ; RT 37.5: 37.5 mm ; RT 50: 50 mm ; RT 75: 75 mm |
| Material feed size | RT 6.5: ~ 4 mm ; RT 12.5: ~ 8 mm ; RT 25: ~ 16 mm ; RT 37.5: ~ 25 mm ; RT 50: ~ 33 mm ; RT 75: ~ 50 mm |
| Batch size / feed quantity | RT 6.5: = 3 l ; RT 12.5: = 3 l ; RT 25: = 16 l ; RT 37.5: = 16 l ; RT 50: = 16 l ; RT 75: = 16 l |
| W x H x D | RT 6.5: 30 x 27 x 25 cm ; RT 12.5: 30 x 27 x 25 cm ; RT 25: 62 x 42 x 26 cm ; RT 37.5: 62 x 42 x 26 cm ; RT 50: 62 x 42 x 26 cm ; RT 75: 62 x 42 x 26 cm |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
