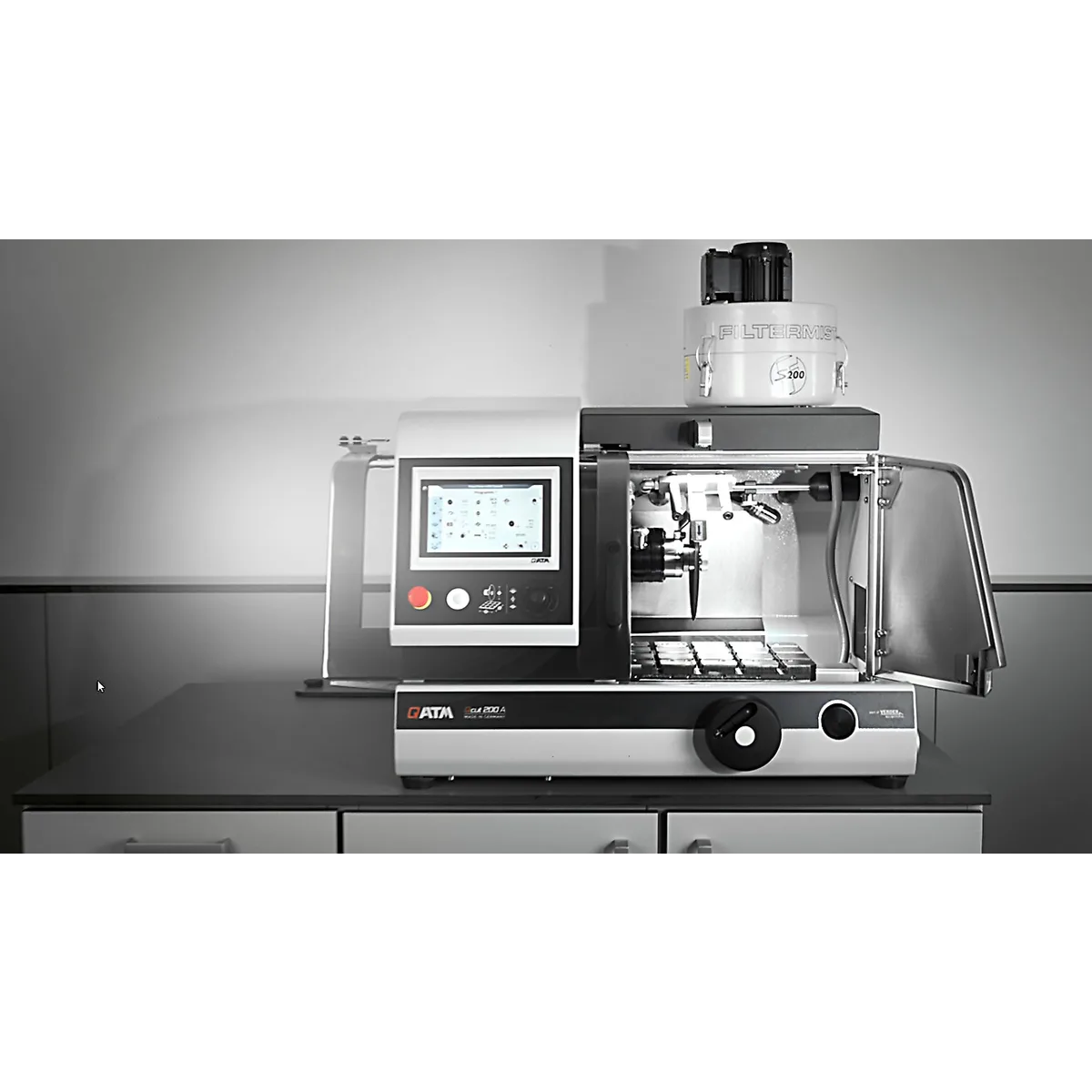

Qcut 200 A: Precision Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Precision cut-off machine with up to three automatic axes for sectioning small and delicate samples where kerf position matters to a few micrometres. Cross feed resolution is 0.001 mm, which suits electronic components, coatings and thin sections rather than bulk metallography.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | 75 mm (cut-off wheel ø 200 mm) |
| Wheel flange size | Ø 12,7 mm |
| Feedrate | 0.005–20 mm/s |
| min. cross feed (Z-axis) | 0,001 mm |
| Speed | 300 - 5000 rpm |
| Drive power (main drive) | 0,75 kW, S1 |
| Connection power | 2,2 kVA |
| W x H x D | 725 x 535 x 675 mm |
| Weight | ~ 82 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
