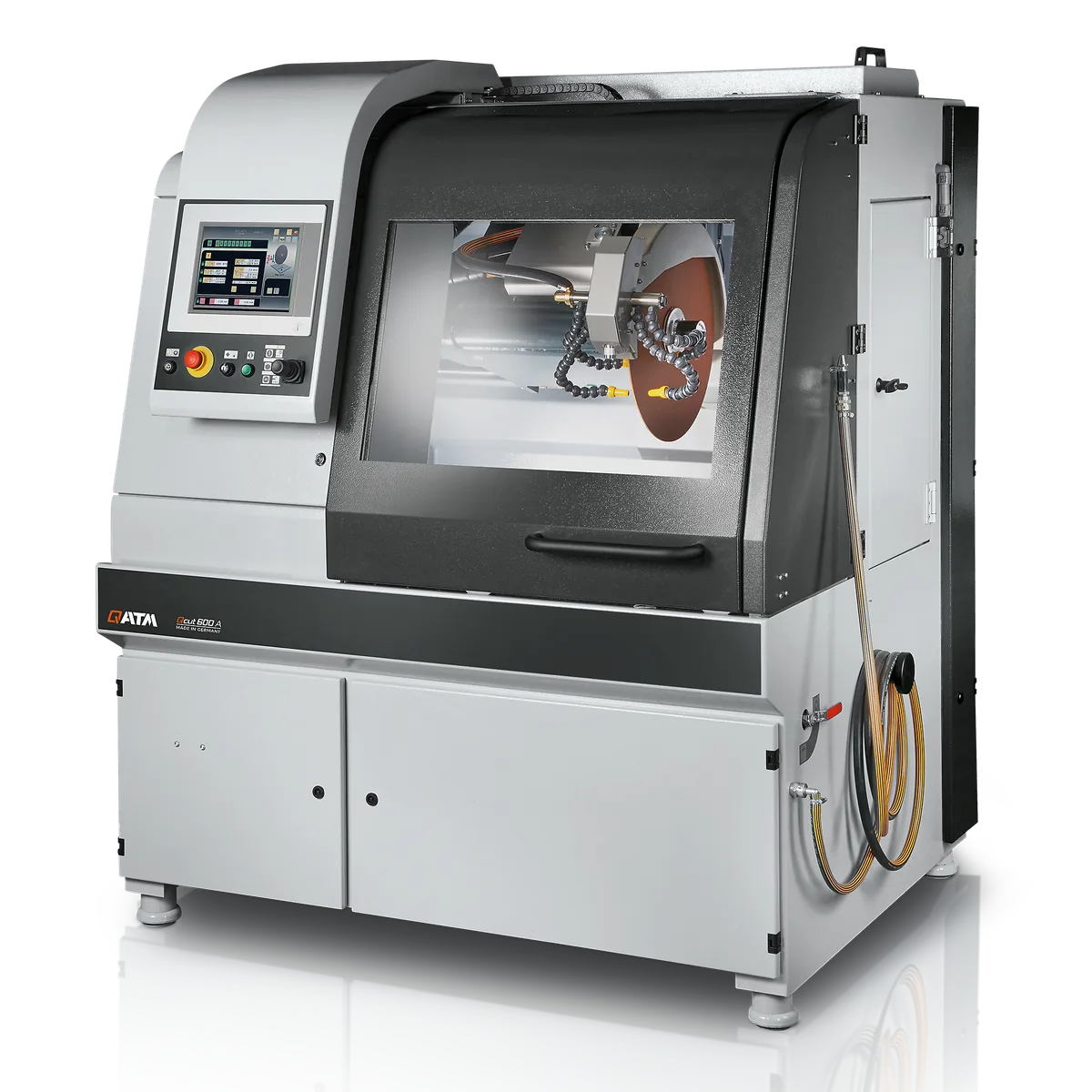

Qcut 600 A: Large Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
The largest cut-off machine in the QATM range, taking wheels up to 600 mm and workpieces up to 244 mm diameter. Automatic travel and cross feed allow low contact cutting of heavy components without repositioning by hand, and the working chamber is sized for the parts that come with that capacity.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | Ø 244 mm |
| Max. way of cutting wheel into sample | 190 mm (cutting wheel Ø 500 mm) |
| Wheel flange size | Ø 32/40 mm |
| Speed | variable 1000-2400 rpm |
| Drive power (main drive) | 15 kW S1 |
| Connection power | 30 kVA |
| W x H x D | 1488 x 1960 x 1477 mm |
| Weight | ~ 1600 kg (depends on equipment) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
