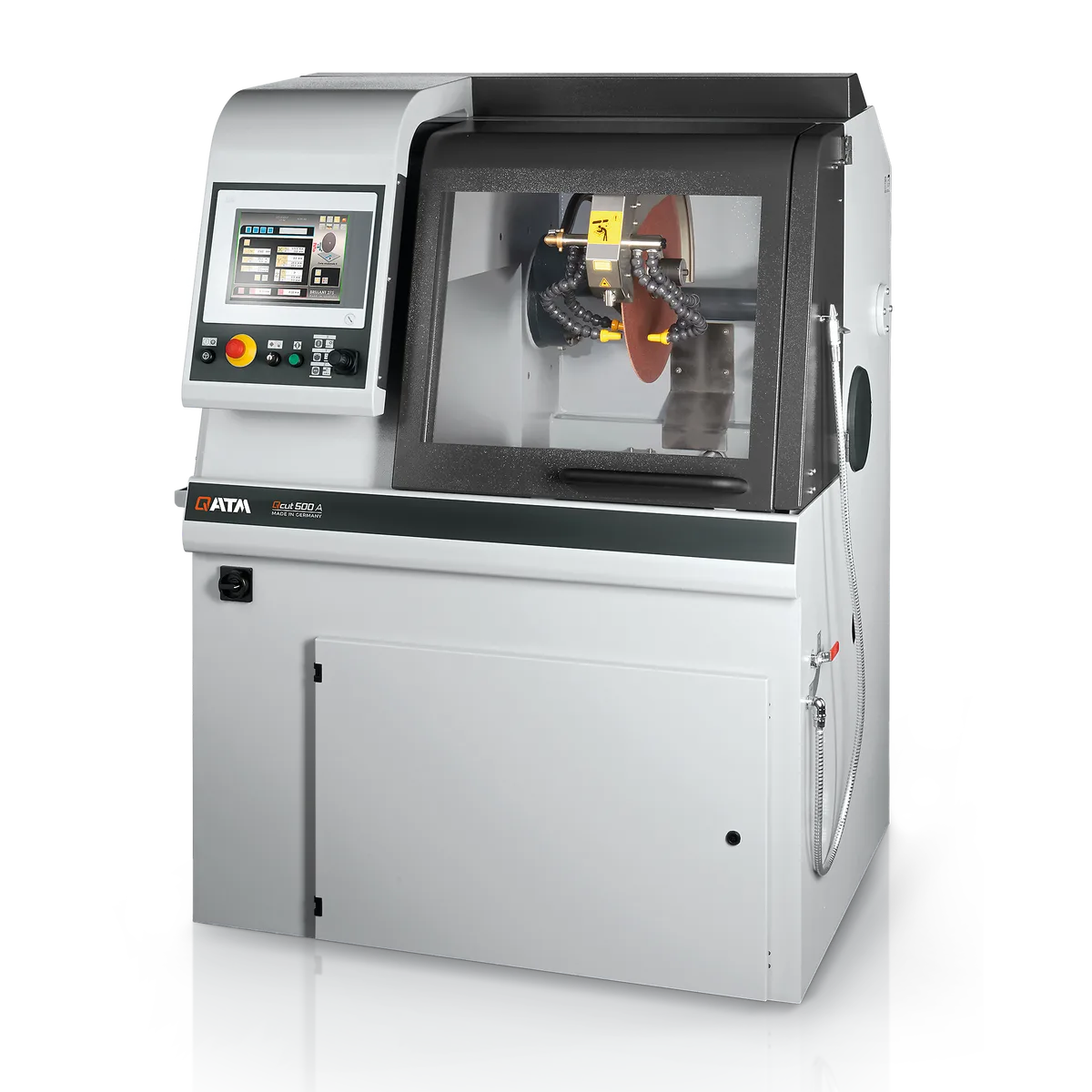

Qcut 500 A: Large Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Floor standing automatic cut-off machine for large components up to 190 mm diameter, with a highly dynamic axis drive and automatic traverse and chop cut functions. Feed rate is adjustable across a wide range so contact pressure can be tuned to the material.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | Ø 190 mm |
| Wheel flange size | Ø 32/40 mm |
| Speed | variable 1000-2800 /1000-2400 rpm |
| Connection power | 30 KVA |
| Drive power (main drive) | 15 kW, S1 operation |
| W x H x D | 1300 x 1820 x 1250 mm |
| Weight | ~ 1000 kg (depends on equipment) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
