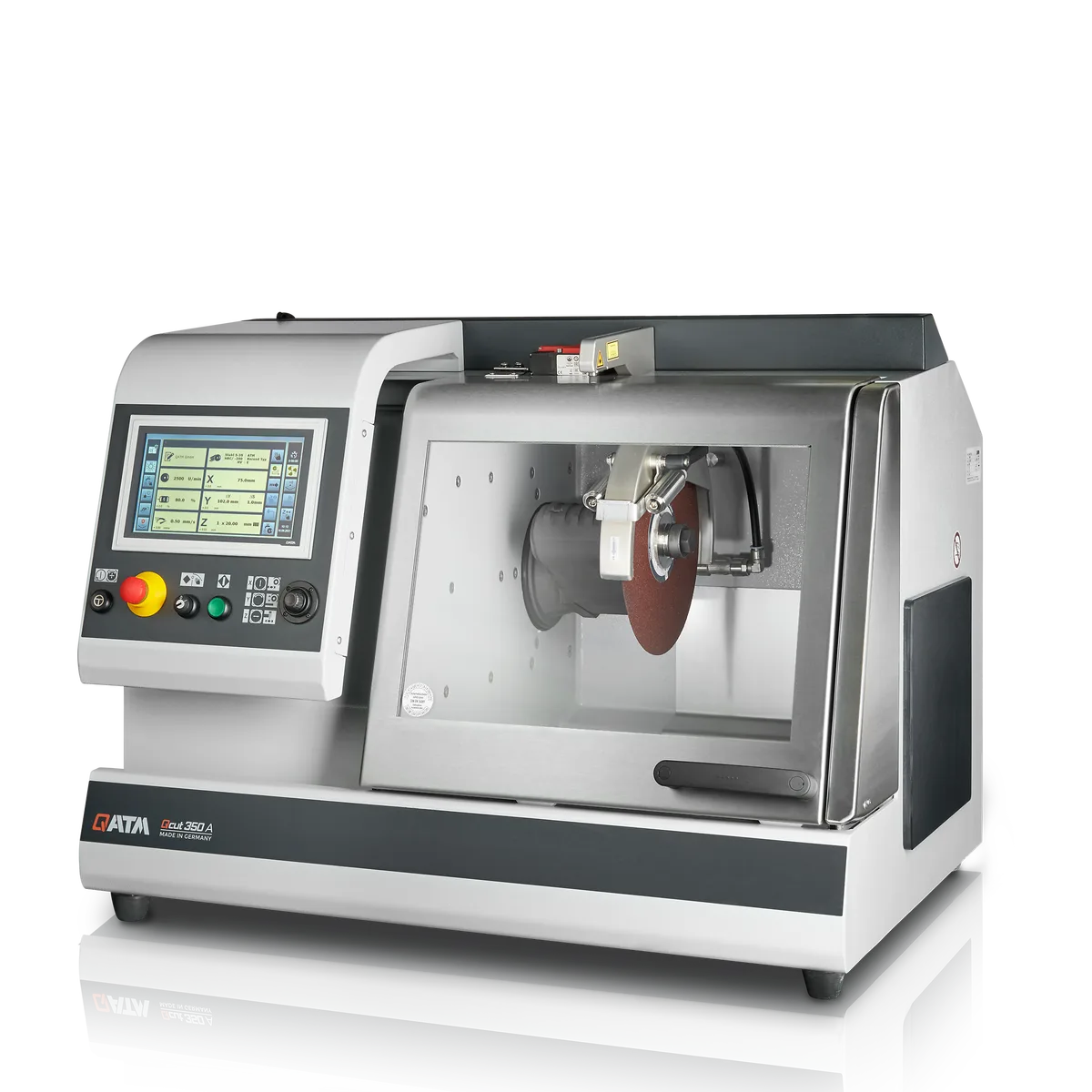

Qcut 350 A: Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Automatic wet abrasive cut-off machine for samples up to 135 mm diameter, with a low contact cutting function that reduces the thermal load on the specimen. Software features include automatic touch detection and multi-position processing, and it is used on composites and electronic assemblies as well as metals.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | Ø 135 mm |
| Wheel flange size | Ø 32 mm |
| Speed | variable 800-3400 rpm |
| Connection power | 9.5 kVA |
| Drive power (main drive) | 4 kW S1; 5.5 kW S3 |
| W x H x D | 1015 x 760 x 810 mm |
| Weight | ~ 200 kg (depends on equipment) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Materials Testing Lab
- Qcut 500 A: Large Cut-off Machine
Floor standing automatic cut-off machine for large components up to 190 mm diameter, with a highly dynamic axis drive and automatic traverse and chop cut functions. Feed rate is adjustable across a wide range so contact pressure can be tuned to the material.
- Qcut 250 A: Cut-off Machine
Semi-automatic abrasive cut-off machine with an automatic X axis, so it can perform pulsed cuts and oscillation cutting on large pieces as well as manual traverse cuts by hand wheel. An optional automatic cross table allows serial cutting, and the axes are monitored by travel measurement during setup and operation.
- Qcut 600 A: Large Cut-off Machine
The largest cut-off machine in the QATM range, taking wheels up to 600 mm and workpieces up to 244 mm diameter. Automatic travel and cross feed allow low contact cutting of heavy components without repositioning by hand, and the working chamber is sized for the parts that come with that capacity.
