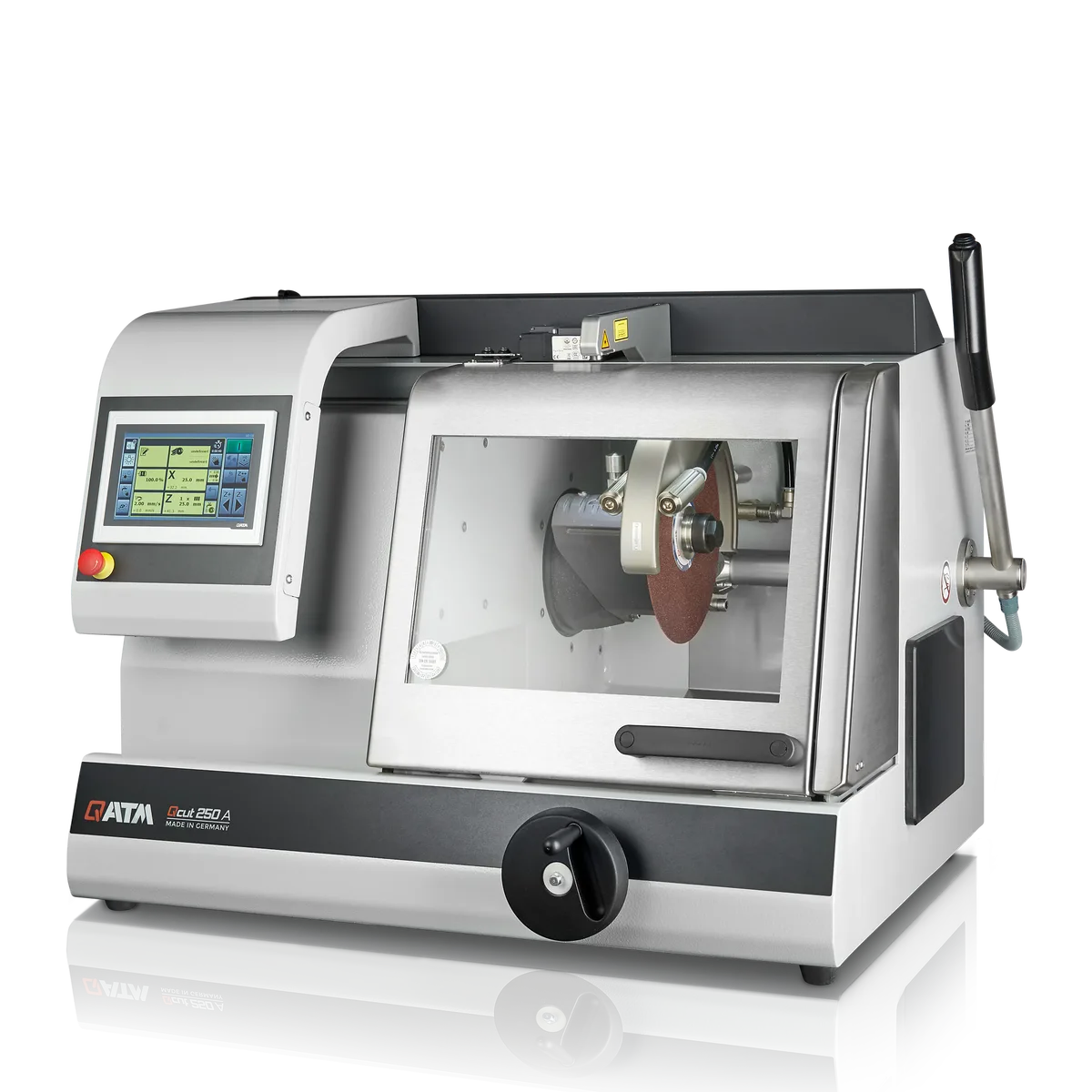

Qcut 250 A: Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Semi-automatic abrasive cut-off machine with an automatic X axis, so it can perform pulsed cuts and oscillation cutting on large pieces as well as manual traverse cuts by hand wheel. An optional automatic cross table allows serial cutting, and the axes are monitored by travel measurement during setup and operation.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | Ø 95 mm |
| Connection power | 5.5 kVA |
| Drive power (main drive) | 3 kW, S1; 4 kW, S3/60% |
| Speed | 3015 rpm at 50Hz and 3100 rpm at 60Hz |
| W x H x D | 925 x 676 x 756 mm |
| Weight (depends on equipment) | ~ 130 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
