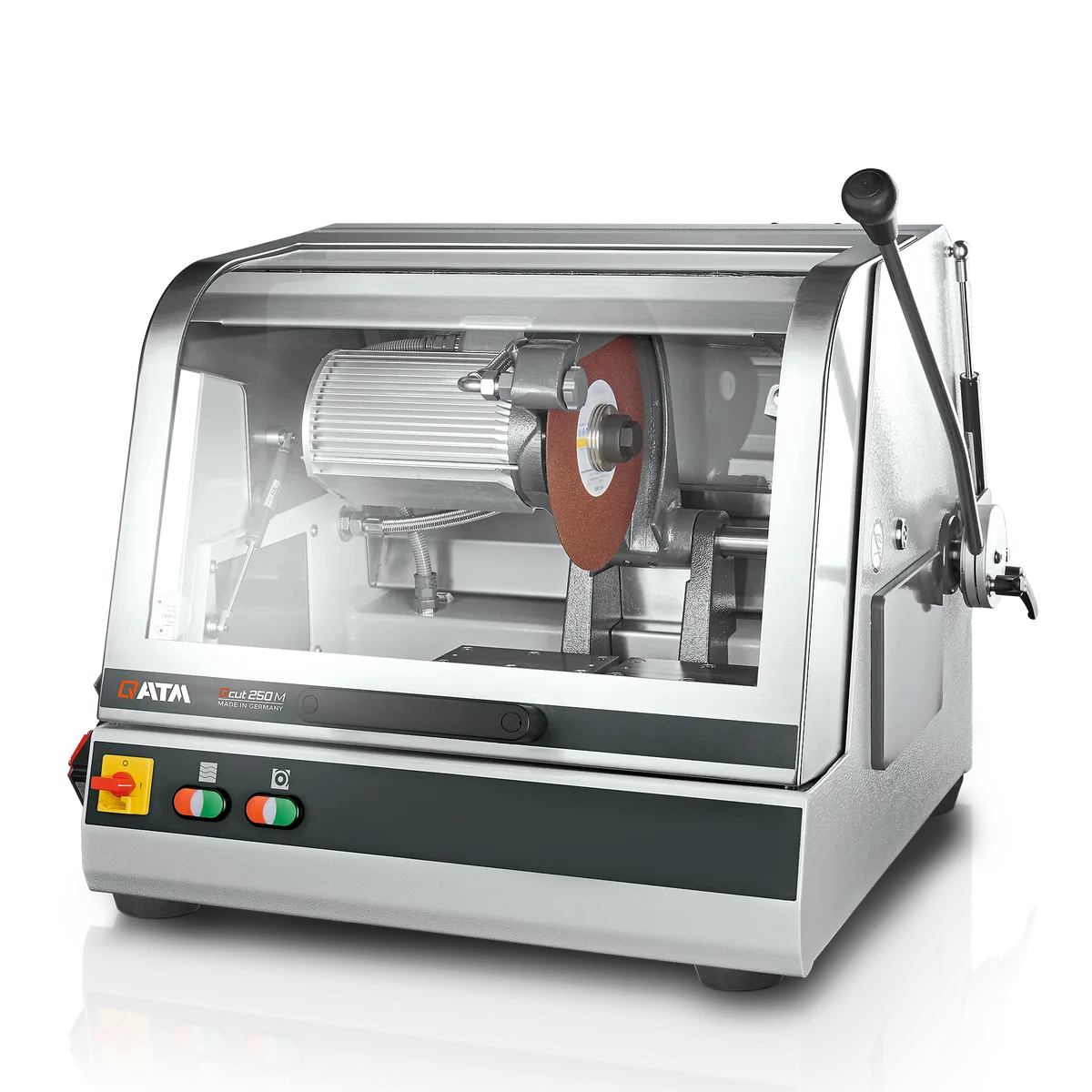

Qcut 250 M: Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Manual wet abrasive cutting machine in which the hood folds inwards on opening, leaving the whole cutting chamber accessible. A round window gives a clear view of the cut in progress. It takes wheels up to 250 mm and samples up to 90 mm diameter for short lengths.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | Ø 55 mm / Ø 90 mm (up to 25 mm length) |
| Wheel flange size | Ø 32 mm |
| Connection power | 4.5 kVA |
| Drive power (main drive) | 3 kW S6 40% |
| W x H x D | 810 x 735 x 650 mm |
| Weight | ~ 75 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
