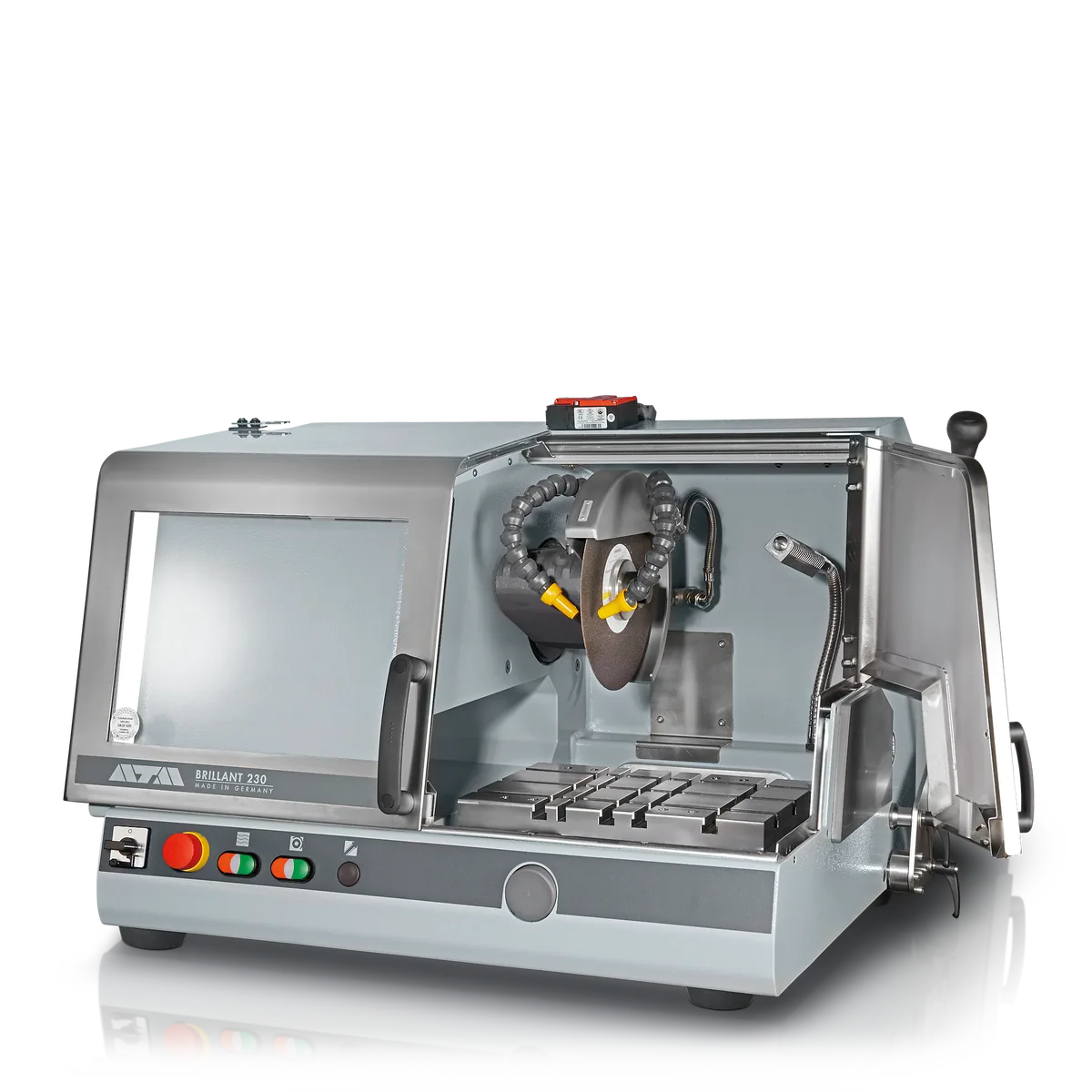

BRILLANT 230: Cut-off Machine
Brand: QATM | Category: Scientific & Laboratory Equipment
Wet abrasive cut-off machine with manual wheel feed for sectioning metallographic samples up to 110 mm diameter. The aluminium body has openings on both sides so long parts can be passed through the cutting chamber, and the chamber itself is large enough for a range of clamping arrangements.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. cutting capacity | Ø 110 mm |
| Wheel flange size | Ø 32 mm |
| Connection power | 6 kVA |
| Drive power (main drive) | 4 kW S1 |
| W x H x D | 830 x 640 x 670 mm |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
