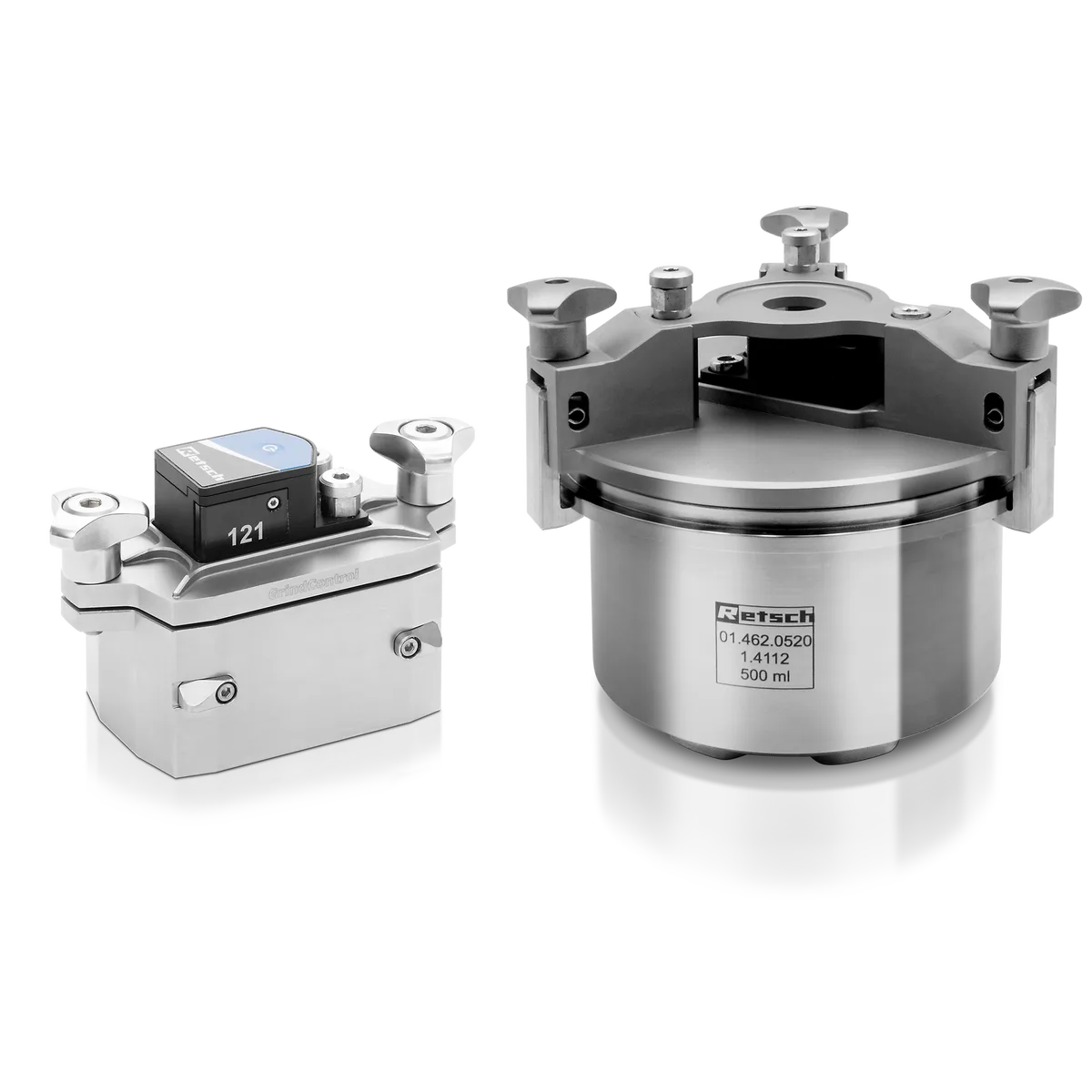

GrindControl: Pressure and Temperature Measuring System
Brand: Retsch | Category: Scientific & Laboratory Equipment
Measuring system that records pressure and temperature inside a sealed grinding jar during a run and transmits the data wirelessly. It turns a ball mill into an instrument for studying what actually happens during grinding, which matters for mechanochemical reactions where gas is evolved or consumed.
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement ranges | gas pressure: 0 - 500 kPa (5 bar) temperature: -20°C - +100 °C |
| Dry grinding | yes |
| Wet grinding | yes |
| Cryogenic grinding | yes min. -20 °C |
| Type of grinding jars | Screw-Lock (MM) and EasyFit jars (PM) |
| Material of grinding tools | hardened stainless steel, zirconium oxide |
| Grinding jar sizes | 125 ml (MM); 50 - 500 ml (PM) |
| Transmission frequency | 5 /s |
| Electrical supply data | battery (up to 80 h operation time) |
| Net weight | lid with sensor unit 360 g (MM) 1780 g / 1140 g (PM) |
| Standards | CE |
| Technical requirements | PC with Windows 11 and Bluetooth 5.0 or higher |
| Software | live monitoring of measurement data, full measurement protocol, storable templates, list of performed measurements, data export in .pdf and .csv |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
