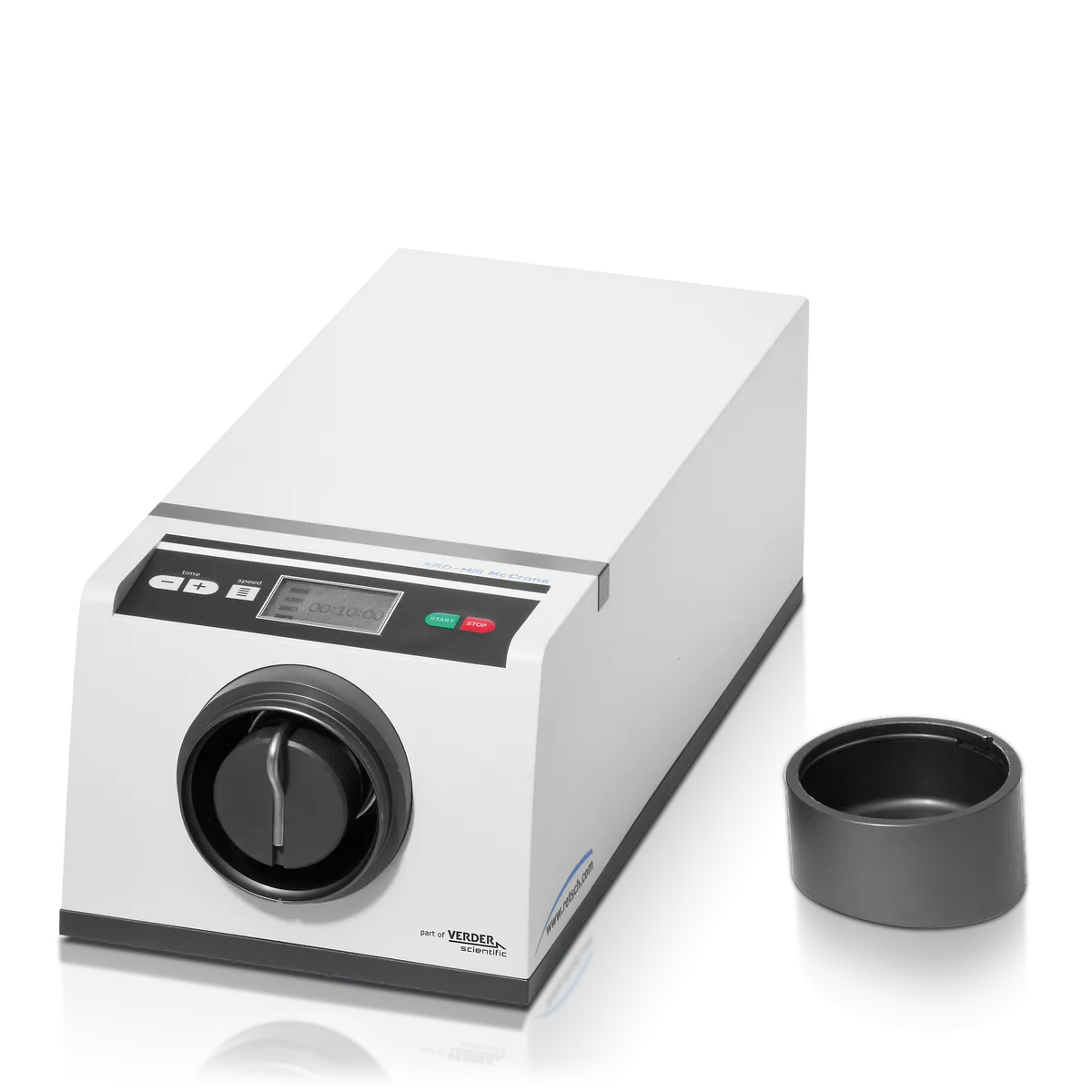

XRD-Mill McCrone
Brand: Retsch | Category: Scientific & Laboratory Equipment
Micronising mill developed specifically for preparing samples for X-ray diffraction. Forty eight cylindrical grinding elements arranged in the jar apply a gentle grinding action that reduces particle size below 1 µm while preserving the crystal lattice, which is what a diffraction measurement depends on.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | medium-hard, hard, brittle, fibrous |
| Max. feed size | 0.5 mm |
| Final fineness | 1 µm |
| Speed at 50 Hz (60 Hz) | 1,000 - 1,500 min-1 in 4 steps |
| Typical mean grinding time | 3 - 30 min |
| Dry grinding | yes |
| Wet grinding | yes |
| Cryogenic grinding | no |
| Material of grinding tools | agate, zirconium oxide, corundum |
| Grinding jar sizes | 125 ml |
| Setting of grinding time | digital, 00:00:10 to 99:59:50 |
| Drive | DC-Motor |
| Drive power | 50W |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
| Power consumption | 33 VA |
| Protection code | IP 30 |
| W x H x D closed | 205 x 155 x 520 mm |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
