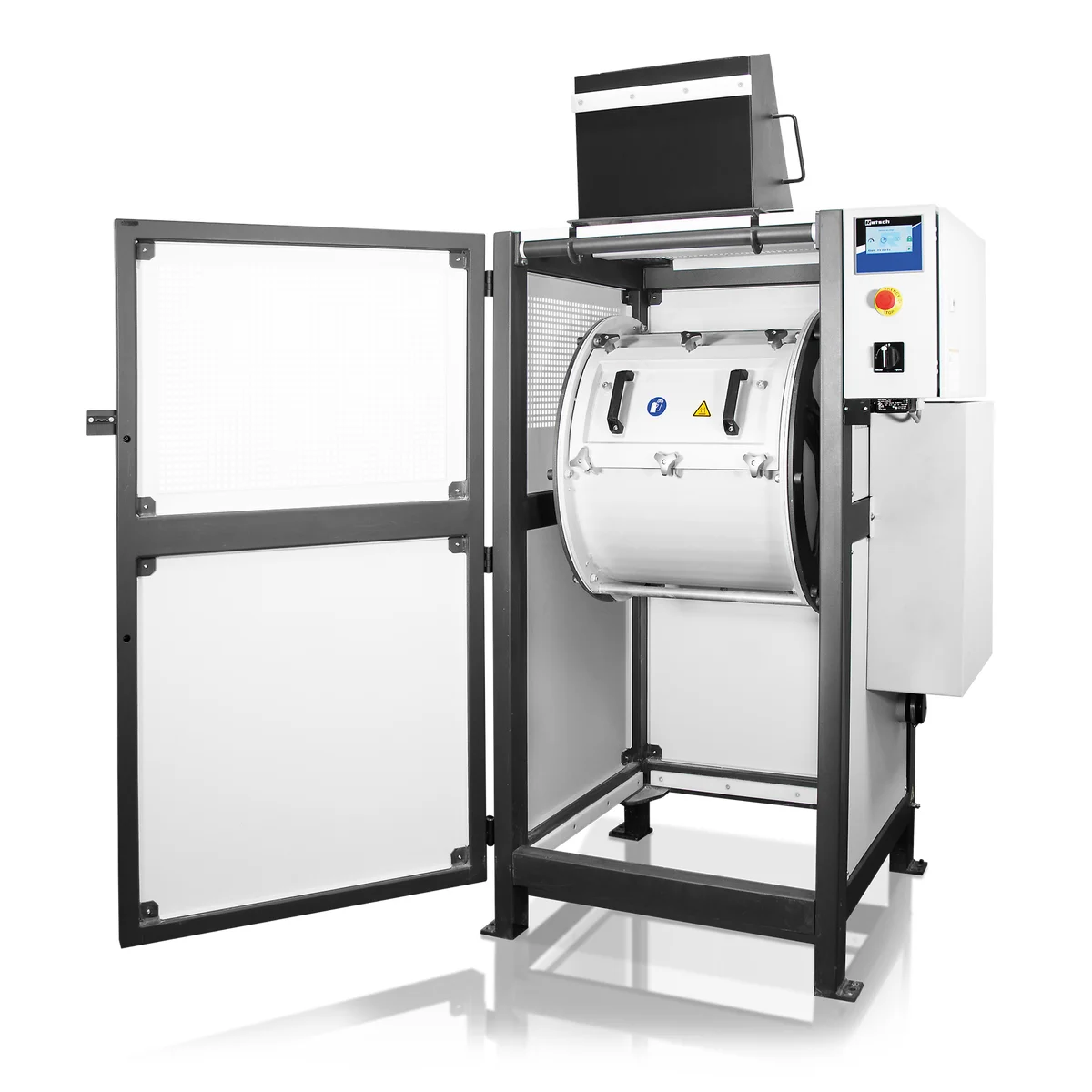

TM 500: Drum Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Large drum mill for sample volumes up to 35 litres, grinding by friction and impact down to about 15 µm. It is the unit to use when a single sample is too large for a planetary or vibratory mill, for example in cement, mining and ceramics laboratories.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | soft, hard, brittle, fibrous |
| Size reduction principle | friction, impact |
| Final fineness | 15 µm |
| Batch size / feed quantity | min. 1 l / max. 35 l |
| Rotation speed | 10 - 50 min-1 |
| Material of grinding tools | hardened steel, stainless steel, steel 316L |
| Grinding drum sizes | 150 l |
| Setting of grinding time | digital, 00:00:01 to 99:59:59 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 2.2 kW |
| Electrical supply data | 200-240 V, 50/60 Hz |
| Power connection | 1-phase |
| Power consumption | ~ 2200 W (VA) |
| Protection code | IP 30 |
| W x H x D closed | 1100 x 1604 x 936 mm |
| Net weight | ~ 460 kg |
| Standards | CE |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
