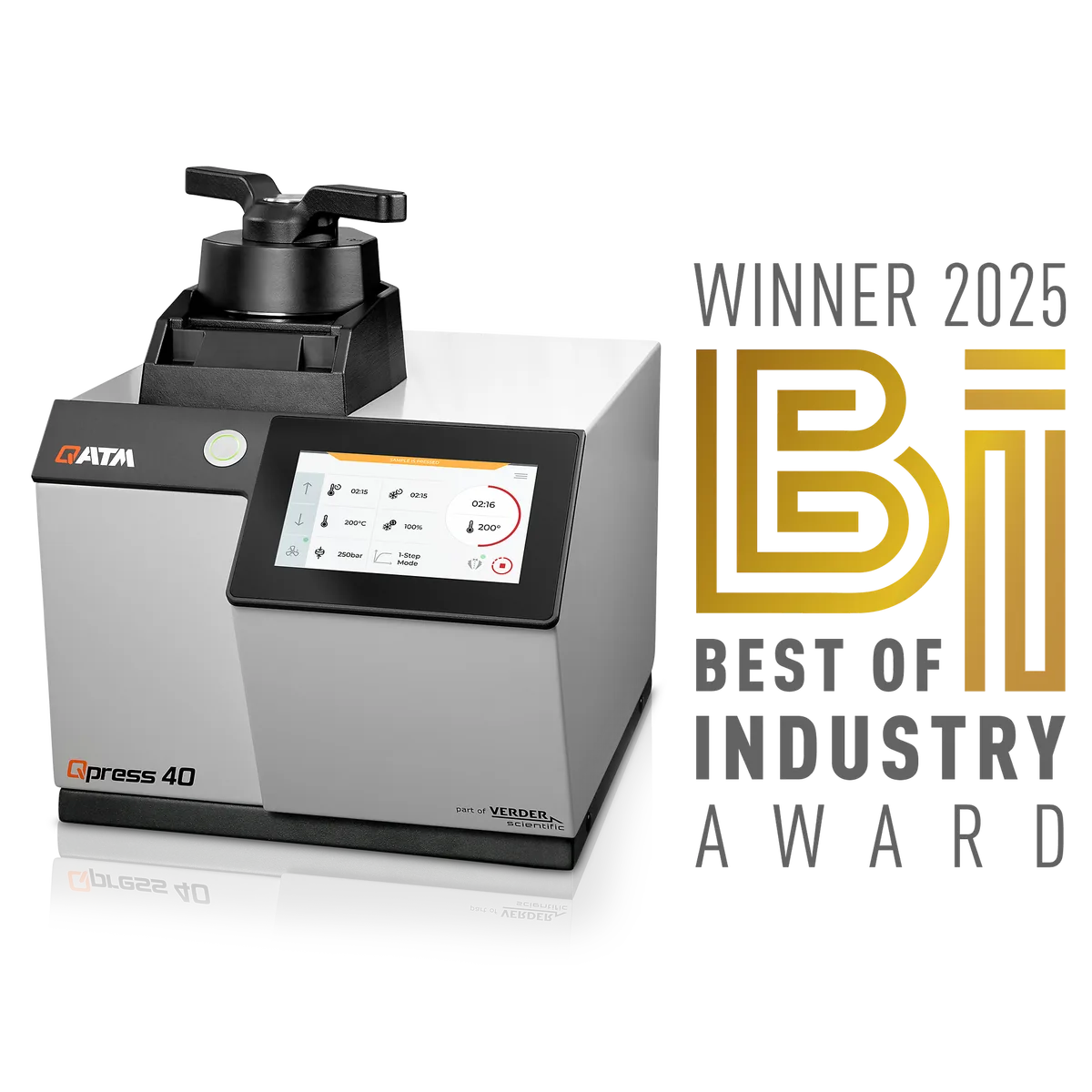

Qpress 40: Hot Mounting Press
Brand: QATM | Category: Scientific & Laboratory Equipment
Fully hydraulic hot mounting press with water cooling, embedding metallographic specimens in thermosetting resin. Heating and cooling times, temperature and pressure are set on an industrial touchscreen, and mould cylinders are available in several round and rectangular sizes. Advanced software adds one button operation and controlled fine dust extraction.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Adjustable temperature | 20 - 200°C |
| Drive power (hydraulics) | 0.36 kW |
| Heating capacity | 1.6 kW |
| Connected load | 2.0 kW |
| Heating time (adjustable) | 0 - 30 min; in 15 s steps |
| Cooling time (adjustable) | 0 - 30 min; in 15 s steps |
| Dimensions (WxHxD) | ~ 365 x 433 x 538mm |
| Weight | ~ 41 kg |
Selected Qpress 40 manufacturer data. The public table gives conflicting pressure values for the 40 mm mould, so pressure is deliberately omitted here pending a current model-specific datasheet. Confirm the mould, software and pressure rating in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
