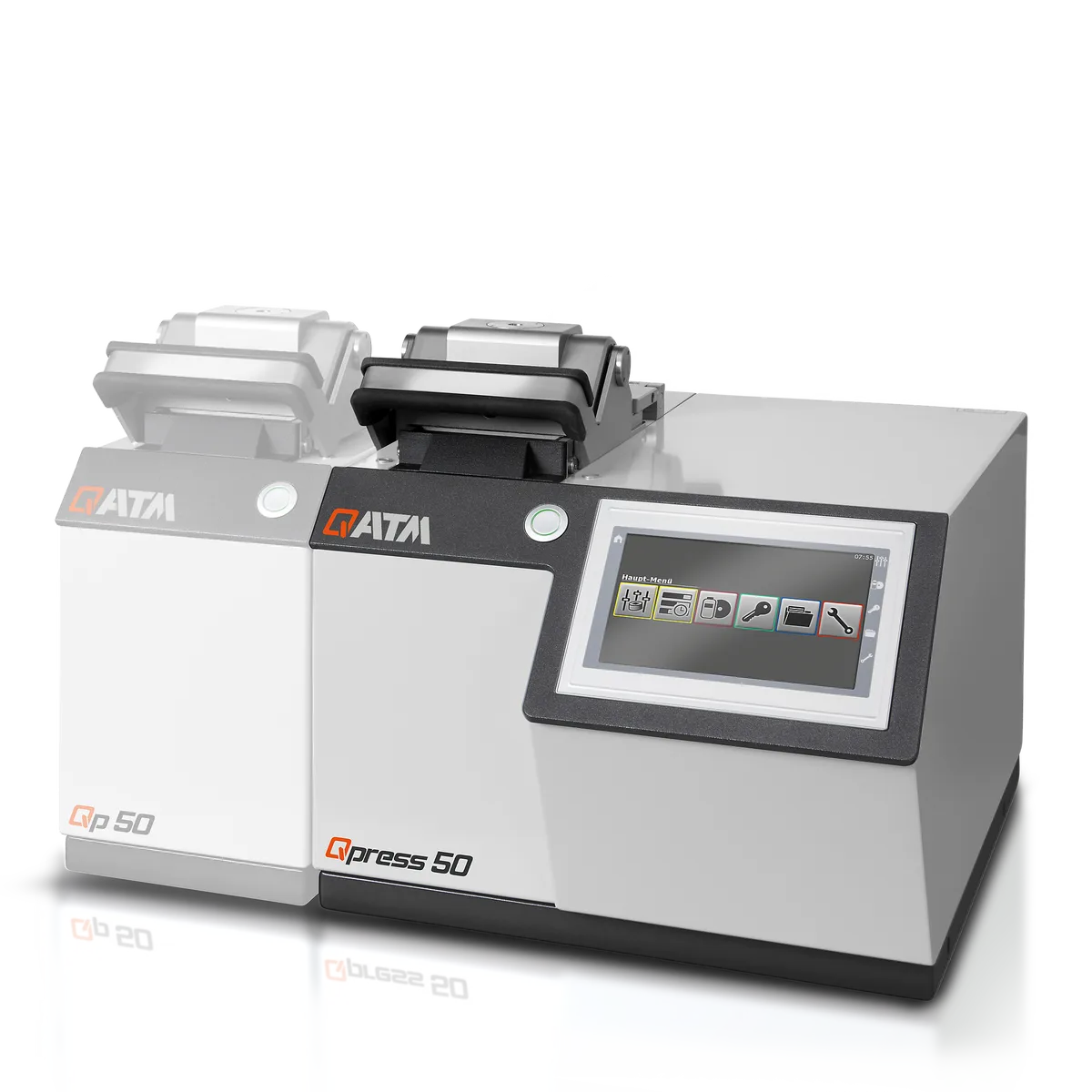

Qpress 50: Hot Mounting Press
Brand: QATM | Category: Scientific & Laboratory Equipment
Hot mounting press in the same fully hydraulic, water cooled family as the Qpress 40, sized for the larger mould diameters. It uses the same closure system, which is designed so the mould assembly opens and closes cleanly over long service.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Thermostate range | 20-200°C |
| Max. pressure in mould cylinder depending on mold assembly's size | 250-350 bar |
| Connection power (basic unit) | 1.6 kVA |
| Connection power (additional pressing unit) | 1.5 kVA |
| W x H x D (basic unit) | 402 x 382 x 563 mm |
| W x H x D (additional pressing unit) | 187 x 382 x 449 mm |
| Weight | ~ 50 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
