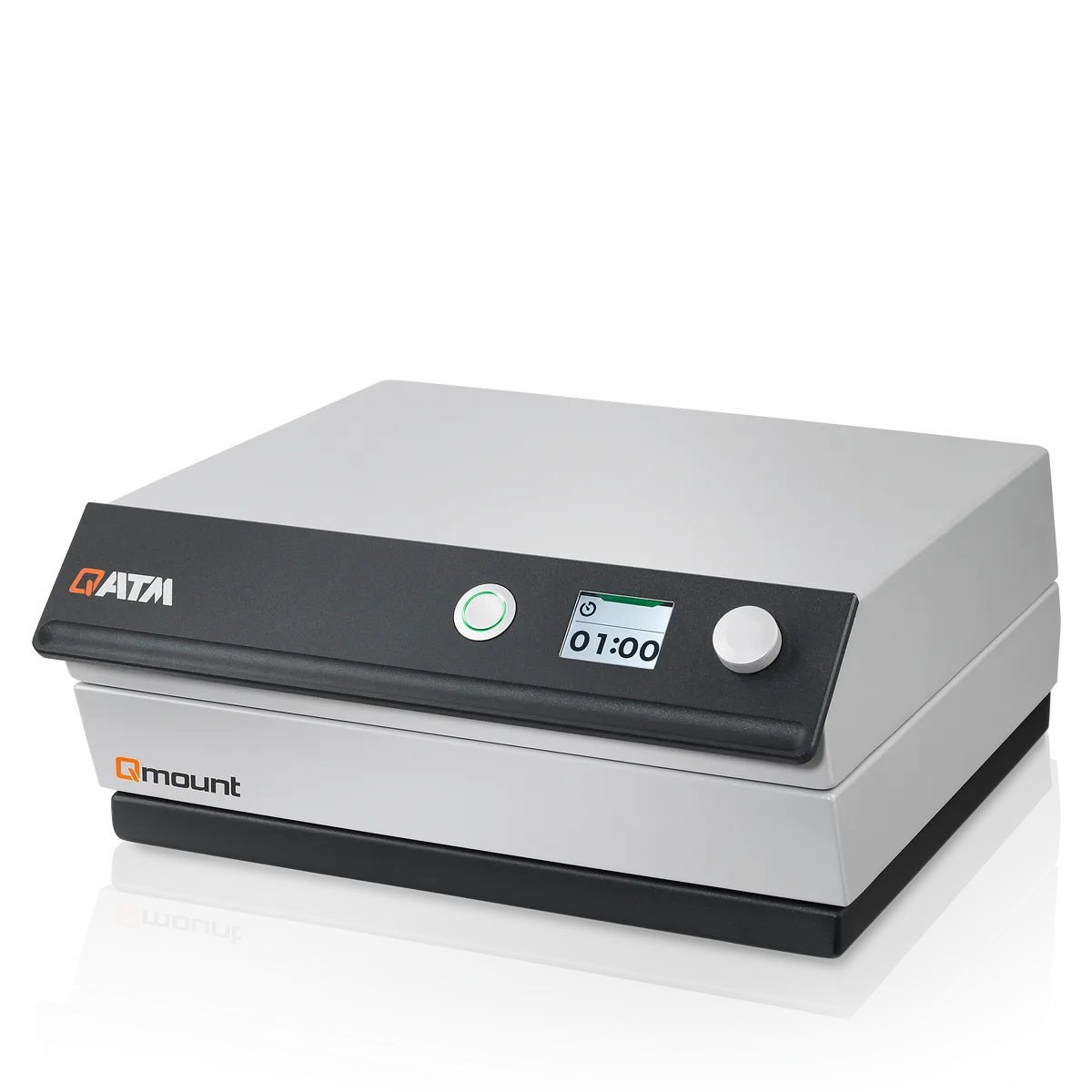

Qmount: UV Mounting Device
Brand: QATM | Category: Scientific & Laboratory Equipment
Ultraviolet curing mounting device that sets the embedding resin with UV light instead of heat and pressure. Because there is no thermal cycle, it suits specimens that would be altered by hot mounting, and cure times are short compared with conventional cold mounting resins.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. sample support surface | 200 x 260 mm |
| Max. sample height | 40 mm |
| Wavelength | 365 nm |
| Adjustable curing time | 0 - 100 min |
| Polymerization temperature (depending on application) | 70- 90 °C |
| Connection voltage | 100 - 240 V 50/60 Hz (1Ph/N/PE) |
| Dimensions (WxHxD) | 377 x 172 x 436 mm |
| Weight (depending on equipment) | 14.5 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
