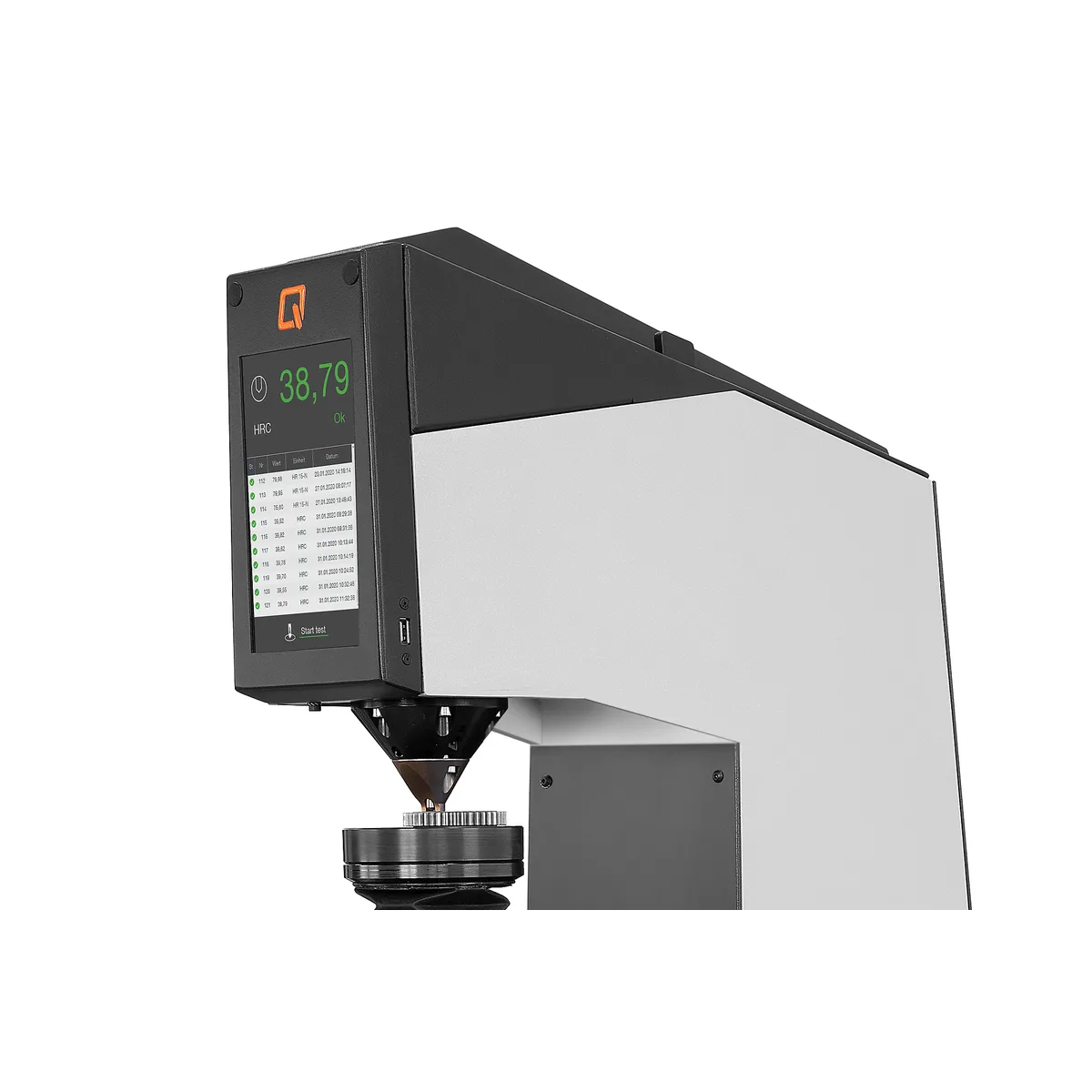

Qness 150 CS: Rockwell Hardness Tester
Brand: QATM | Category: Scientific & Laboratory Equipment
Compact Rockwell hardness tester with a C shaped frame, a fixed test head and a spindle that raises the specimen to the indenter. Force is applied electronically and the sequence runs automatically, with results shown on a 7 inch touchscreen. It complies with DIN EN ISO 6508 and ASTM E-18.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Test force range | 1 - 250 kg (9.81 - 2452 N) |
| Test height | 250 mm |
| Max. workpiece weight | 100 kg |
| Weight of basic device | 77 kg |
| Power connection | 100 - 240 V, ~1/N/PE, 45 - 65 Hz |
| Max. power consumption | ~60 W |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
