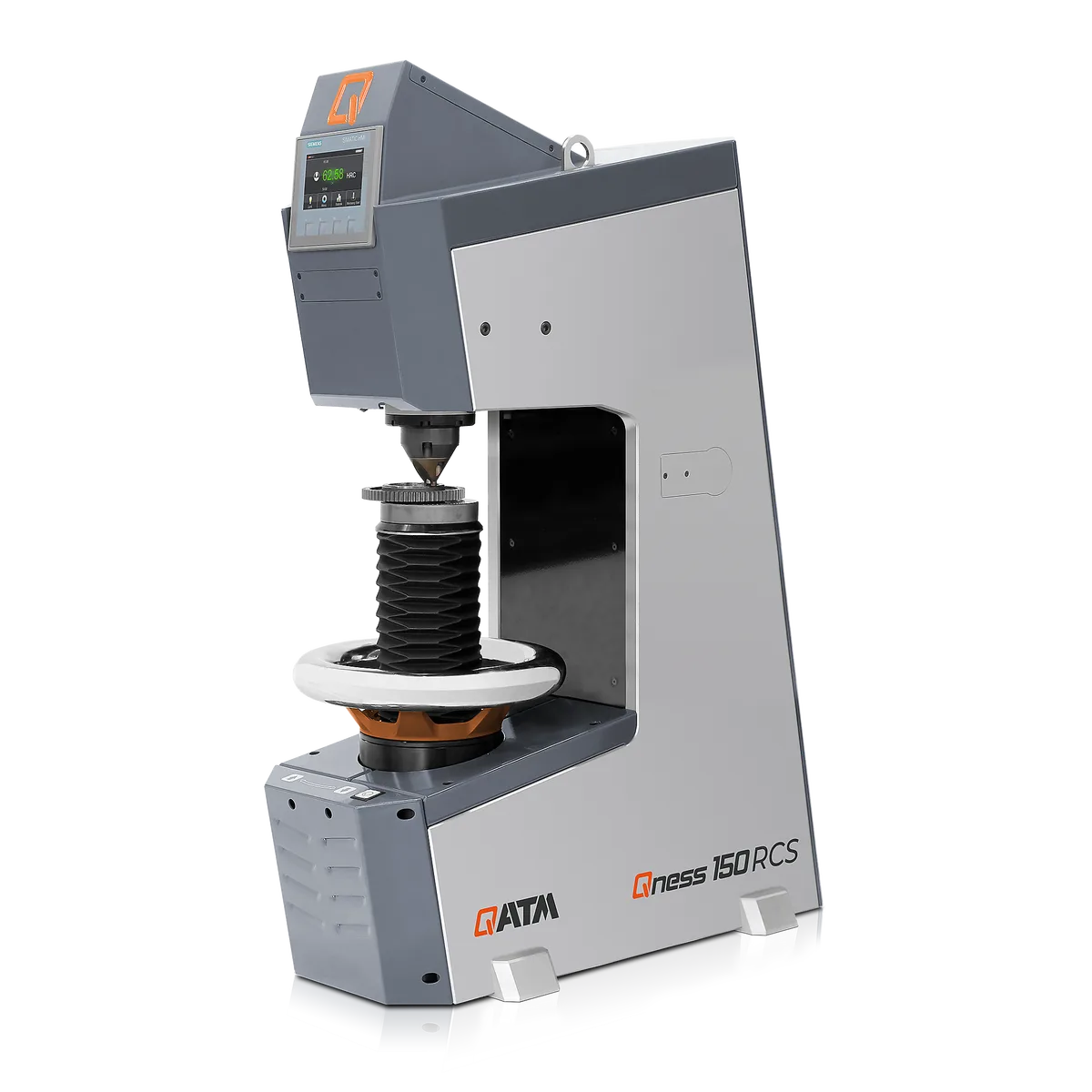

Qness 60 / 150 RCS: Rockwell Hardness Tester
Brand: QATM | Category: Scientific & Laboratory Equipment
Production line Rockwell hardness tester with a test cycle under two seconds, controlled by a Siemens S7 with a 4 inch touch display. It is built to be integrated into a production line for in-process hardness checking, with results output over an RS232 interface.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Test force area | Qness 150 RCS: 150 kg (1471.5 N) | Qness 60 RCS: 62.5 kg (613.1 N) |
| Test height | horizontal reach | 180 mm / 180 mm |
| Weight of basic device | 120 kg |
| Power supply | 230~1/N/PE, 110~1/N/PE |
| Max. power consumption | ~ 360 W |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Materials Testing Lab
- Qness 200 CS: Macro Hardness Tester
Compact universal macro hardness tester with a five position turret carrying indenters and lenses. The fixed head and moving spindle arrangement gives a 250 mm test height with a 238 mm throat, so reasonably large parts can be tested without a special fixture.
- Qness 150 CSA+: Rockwell Hardness Tester
Rockwell hardness tester with a fully automatic XY slide, combining the speed of a dedicated Rockwell machine with automated series testing. It suits parts of identical test height where a defined pattern of indents is required, and single tests can still be run manually.
- Qness 250 / 750 / 3000 C and CS EVO: Universal Hardness Tester
Universal hardness testers covering Brinell, Vickers, Rockwell, Knoop and plastics methods, in three force classes up to 3000 kg. The C shaped frame with fixed head and moving spindle gives a 395 mm test height, and an eight position tool changer is available in place of the standard two positions.
