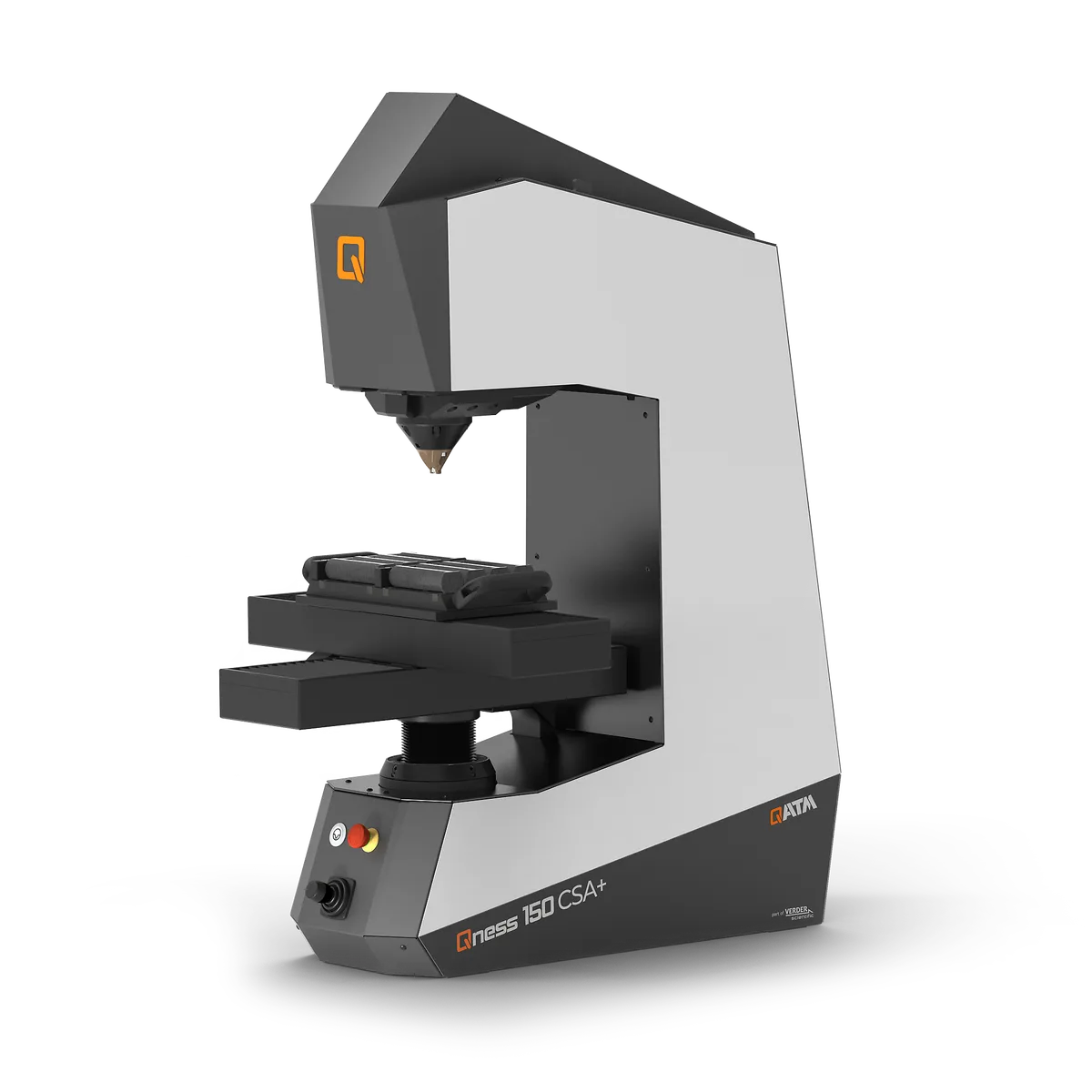

Qness 150 CSA+: Rockwell Hardness Tester
Brand: QATM | Category: Scientific & Laboratory Equipment
Rockwell hardness tester with a fully automatic XY slide, combining the speed of a dedicated Rockwell machine with automated series testing. It suits parts of identical test height where a defined pattern of indents is required, and single tests can still be run manually.
Plan your specification
Specify your Rockwell testing workflow
The Qness 150 CSA+ supports automated test series on parts of identical test height, as well as individual tests. Start with the parts you need to test so the proposed configuration matches your work.
- Method and acceptance criteria
- Share the Rockwell scale and test standard required by your drawing or quality procedure. Ask which indenters, reference blocks and verification documents are included.
- Specimens and fixtures
- Provide specimen dimensions, weight and test-point locations. Confirm working clearance, support and clamping for your parts before selecting the configuration.
- Automation and reporting
- Describe batch size, test pattern and report format. Confirm the software, fixtures and any data-export options in the quotation.
Product documentation
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Test force range | 1 - 250 kg (9.81 - 2450 N) |
| Test height | 140 mm |
| Max. workpiece weight | 100 kg |
| Weight of basic device | 140 kg |
| Ports | 1x RJ45 (Ethernet) |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Material, specimen dimensions and test-point locations
- Required Rockwell scale and test standard, if known
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
