Quattro
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

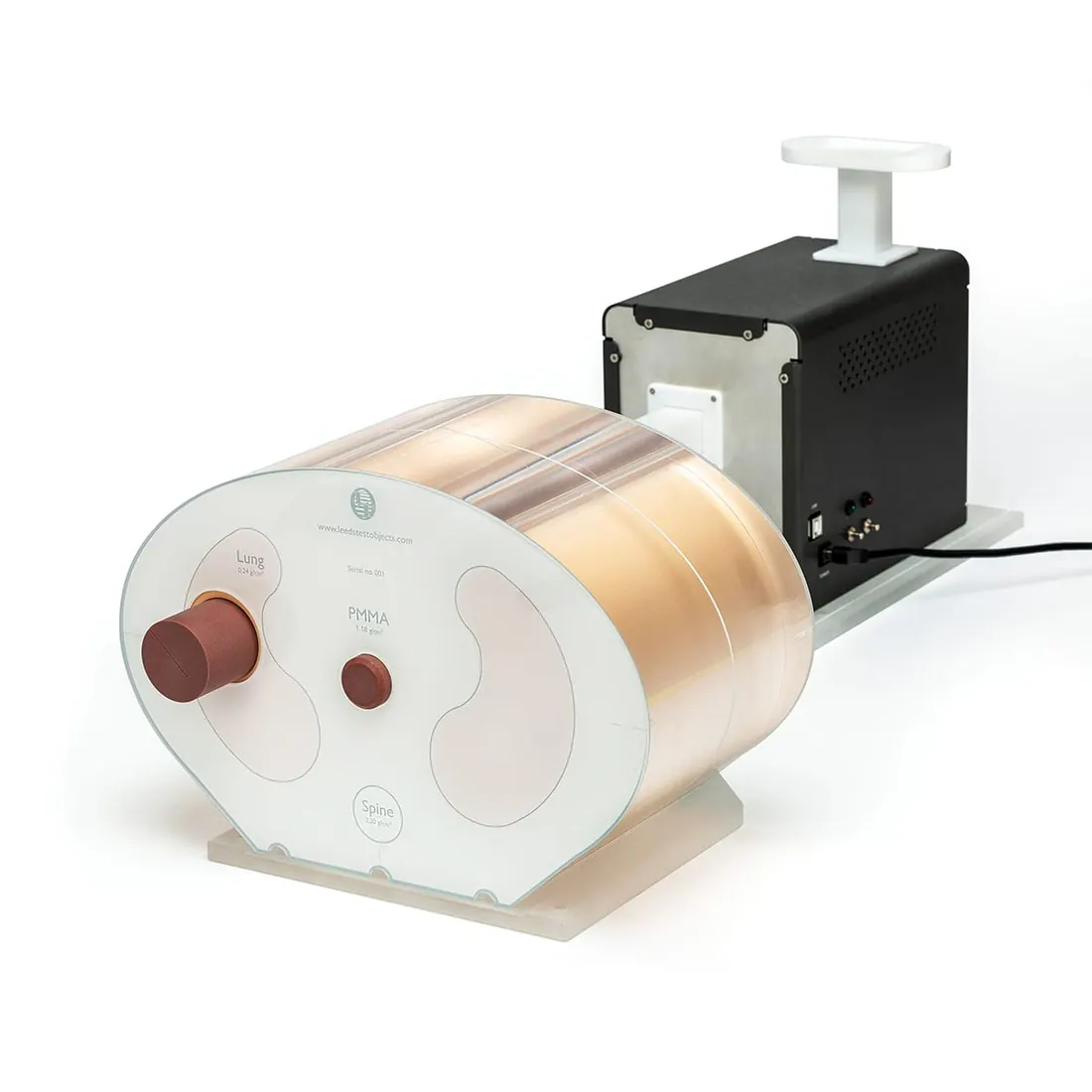

A programmable three axis respiratory motion phantom for 4DCT and PET quality assurance. It pairs a motion arm with a semi-anthropomorphic tissue equivalent chest phantom, driving vertical surrogate motion, horizontal insert motion and continuous twist of the insert at the same time.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Programmable Z axis motion, speed 0 to 7.5 cm/s, distance range 6 cm |
| Specification | Maximum error in timing 1.4%, typically within 0.3% of intended |
| Three simultaneous motions | vertical surrogate, horizontal insert and twist |
| Quattro inserts | simulated tumour centred and off-set, film dosimetry, ion chamber dosimetry, TLD dosimetry, fillable PET sphere |
| Specification | Quattro Essential includes the simulated tumour insert only |
| Specification | Mains powered with USB interface and free software |
