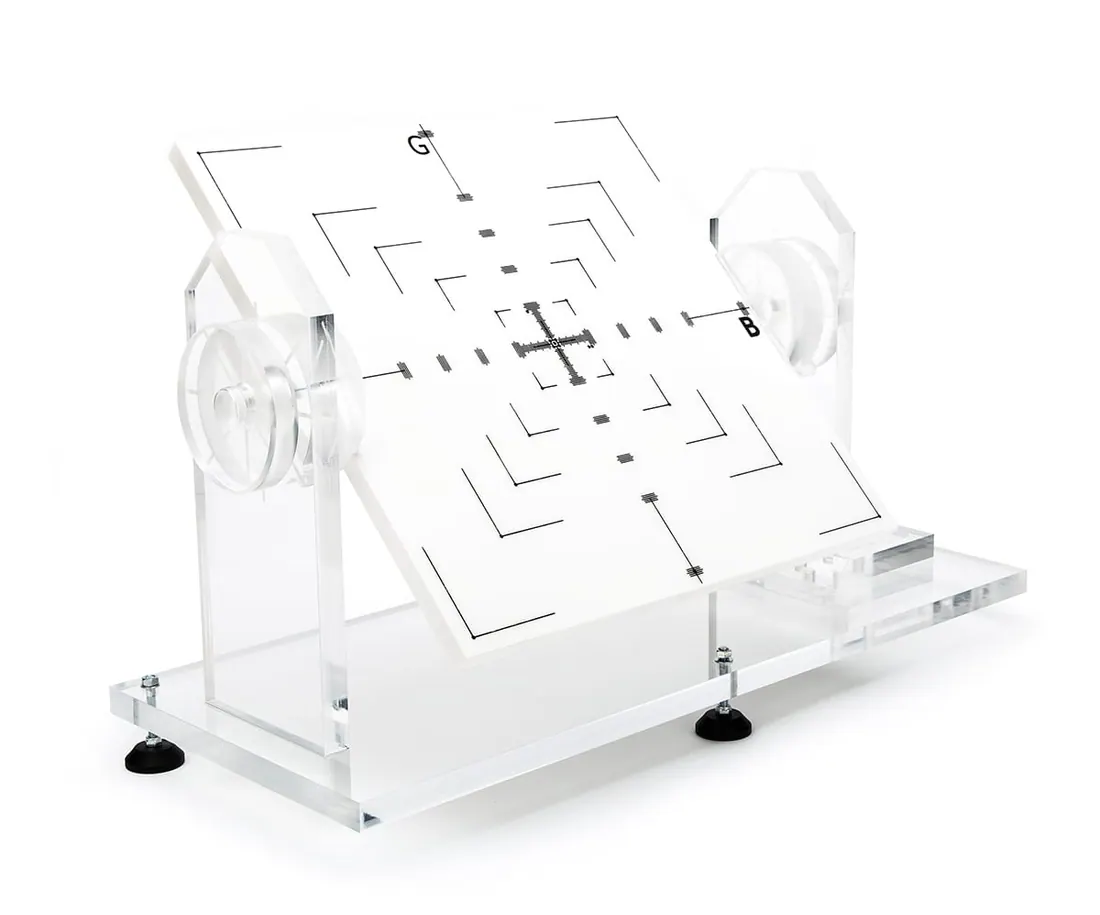

RT ALIGN ROTATE
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
The rotating version of the RT ALIGN plate, which can be indexed through a full turn in fixed increments with or without its rotation jig. It carries the same fiducial marks and embedded ball bearings for isocentre alignment, field size and EPID scaling checks.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Fiducial marks for 5x5, 10x10, 15x15 and 20x20 field sizes |
| Specification | Embedded BBs for phantom edges, centre and offset locations |
| Specification | Can be rotated 360 degrees in 45 degree increments |
| Specification | Use with or without rotation jig |
| Specification | Laser alignment marks |
| Specification | Use on EPID surface or couch |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
