RT ALIGN
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

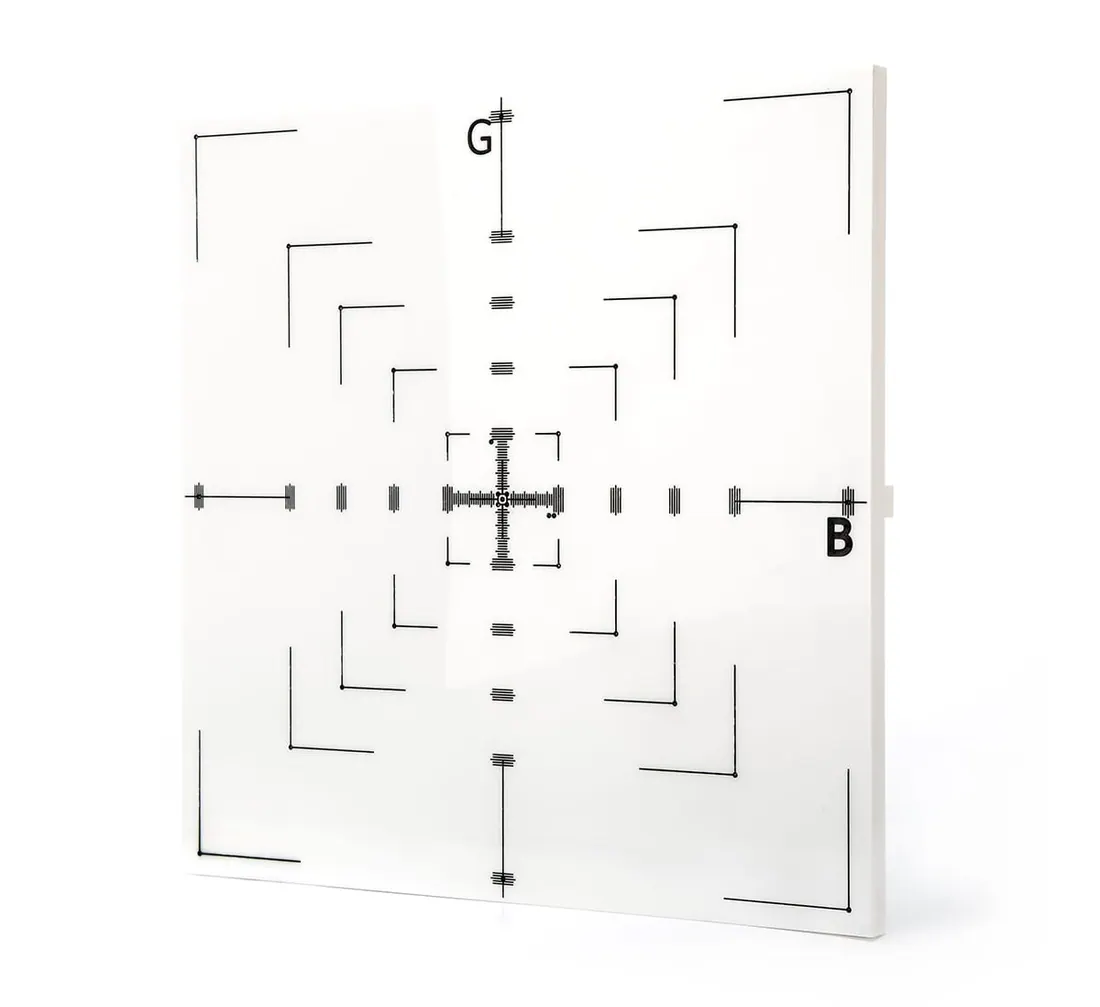

A radiotherapy alignment plate carrying fiducial marks for the common square field sizes and embedded ball bearings at the edges, centre and offset positions. It is used on the EPID surface or on the couch for isocentre alignment, field size checks and EPID scaling.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Fiducial marks for 5x5, 10x10, 15x15 and 20x20 field sizes |
| Specification | Embedded BBs for phantom edges, centre and offset locations |
| Specification | Laser alignment marks |
| Specification | Isocentre alignment using central embedded BBs |
| Specification | EPID based field size and light field coincidence checks |
| Specification | Does not include a rotation jig, order RT ALIGN ROTATE if rotation is required |
