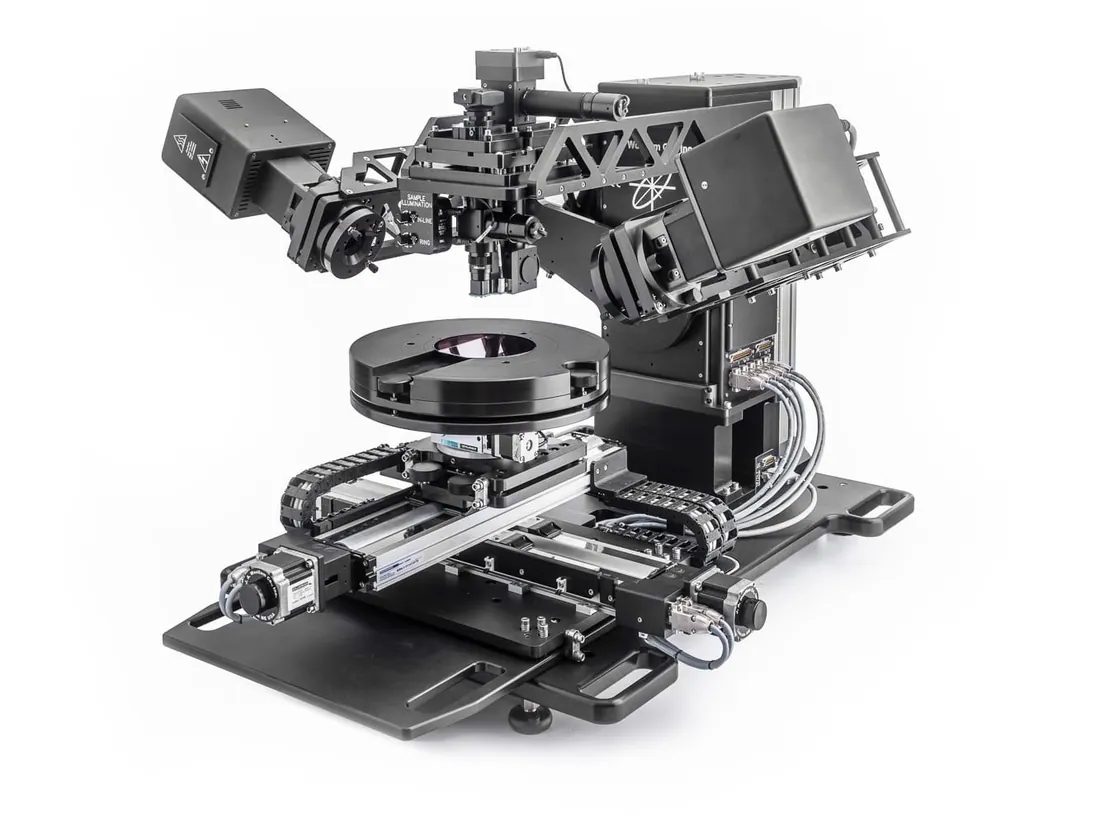

RC2 Ellipsometer
Brand: J.A. Woollam | Category: Nanotechnology
The RC2 uses two synchronously rotating compensators and was the first commercial spectroscopic ellipsometer to collect all 16 elements of the Mueller matrix. That makes it suited to anisotropic materials, liquid crystals and nanostructures as well as ordinary thin film work.
Technical Specifications
| Parameter | Value |
|---|---|
| Ellipsometer configuration | dual rotating compensator (dual RCE) |
| Wavelength range | 193 to 1000 nm in the D configuration, XNIR option adds 1005 to 2500 nm |
| Number of wavelengths | about 800 in the D configuration |
| Angles of incidence | 45 to 90 degrees automated angle base, 20 to 90 degrees vertical automated angle base |
| Data acquisition rate | 0.3 seconds minimum, 2 to 10 seconds typical for the complete spectrum |
| Maximum substrate thickness | 18 mm |
