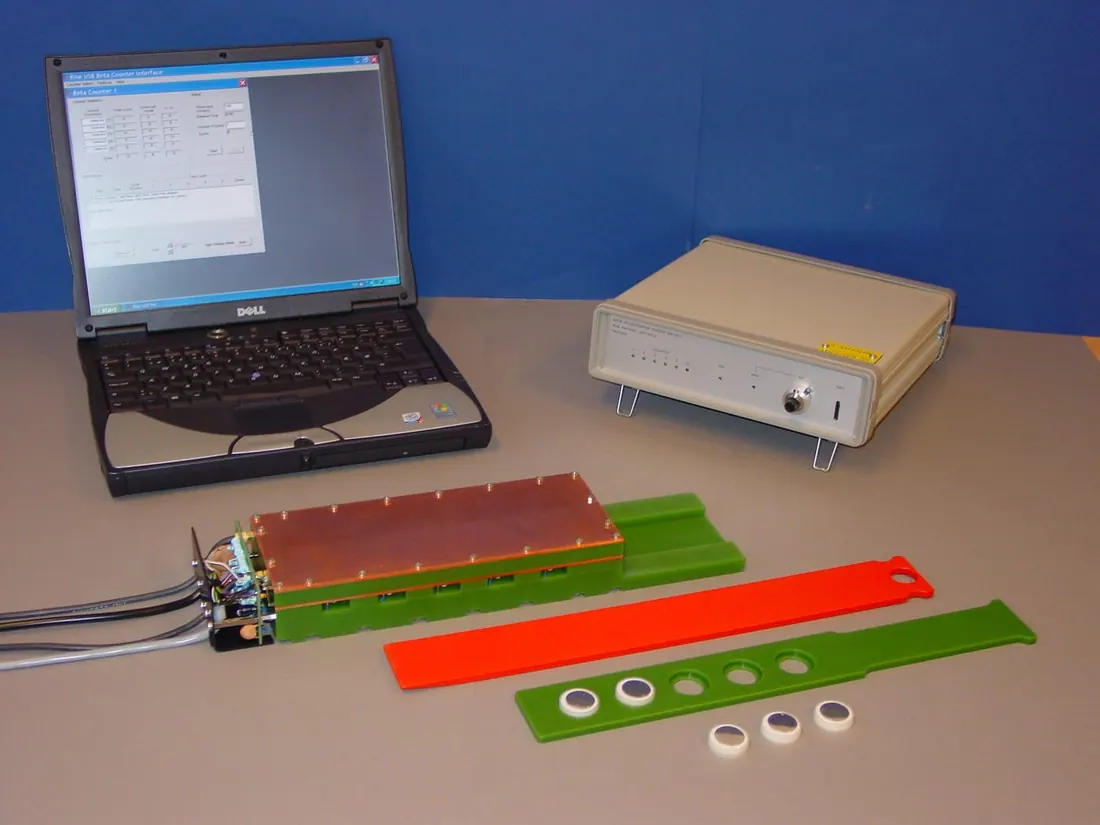

Riso GM-25-5A Low-level beta GM multicounter
Brand: Riso | Category: Scientific & Laboratory Equipment
A low level gas flow Geiger Muller multicounter that measures five samples at the same time. A common guard counter cuts the cosmic ray background by anticoincidence, and the unit is normally placed inside a 100 mm lead shield for environmental radioactivity work.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Five individual GM sample counter elements and a common guard counter |
| Specification | Sample size 25 mm diameter with aluminised Mylar window below 1 mg/cm2 |
| Specification | Counter gas 99% argon with 1% isobutane, or 99% argon with 1% propane |
| Specification | Background in 100 mm lead shielding below 0.2 CPM, typically below 0.15 CPM |
| Specification | Efficiency 54% for 90Sr/Y, 44% for 36Cl, 42% for 99Tc and 24% for 14C |
| Specification | Mechanical unit 50 x 100 x 250 mm, discriminator and anticoincidence module 250 x 250 x 65 mm |
