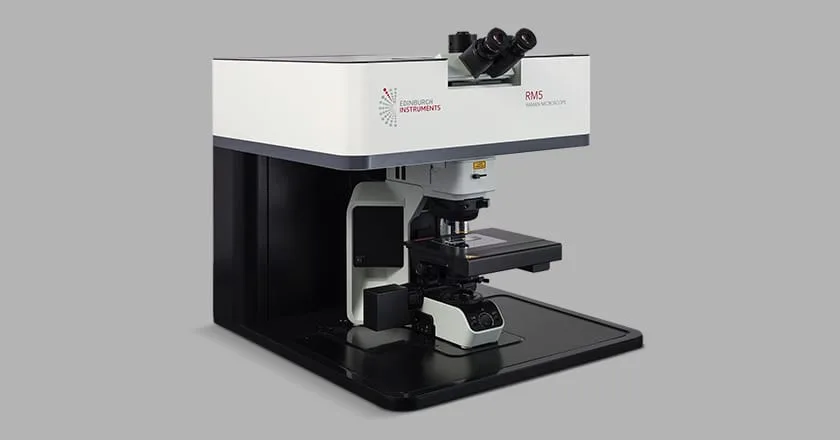

RM5: Confocal Raman Microscope
Brand: Edinburgh Instruments | Category: Nanotechnology
Fully automated confocal Raman microscope on a 225 mm asymmetric Czerny-Turner spectrograph, with up to three computer selected lasers, matching rejection filters and a five position grating turret. Internal wavelength, Raman shift and sensitivity standards are built in, together with automated laser alignment, so calibration does not depend on the operator.
Technical Specifications
| Parameter | Value |
|---|---|
| Integrated laser capacity | Up to 3 narrow-band lasers; wavelengths selected for the application |
| Spectral resolution | From <0.3 cm⁻¹; depends on grating, laser and CCD selection |
| Spectral range | <50 to 15,000 cm⁻¹; depends on grating, laser and CCD selection |
| Spectrograph focal length | 225 mm |
| Grating turret | 5 positions, computer-controlled |
| Confocal aperture | Adjustable pinhole, computer-controlled |
| Dimensions without laser enclosure | 600 × 800 × 600 mm (W × D × H) |
| Weight without laser enclosure | 63 kg |
Selected values from the manufacturer’s RM5 specification tables. The achievable range and resolution depend on the grating, laser and detector combination. Dimensions and weight exclude the laser enclosure. Confirm the enclosure, stage, detector and laser configuration before comparing offers. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Edinburgh Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
