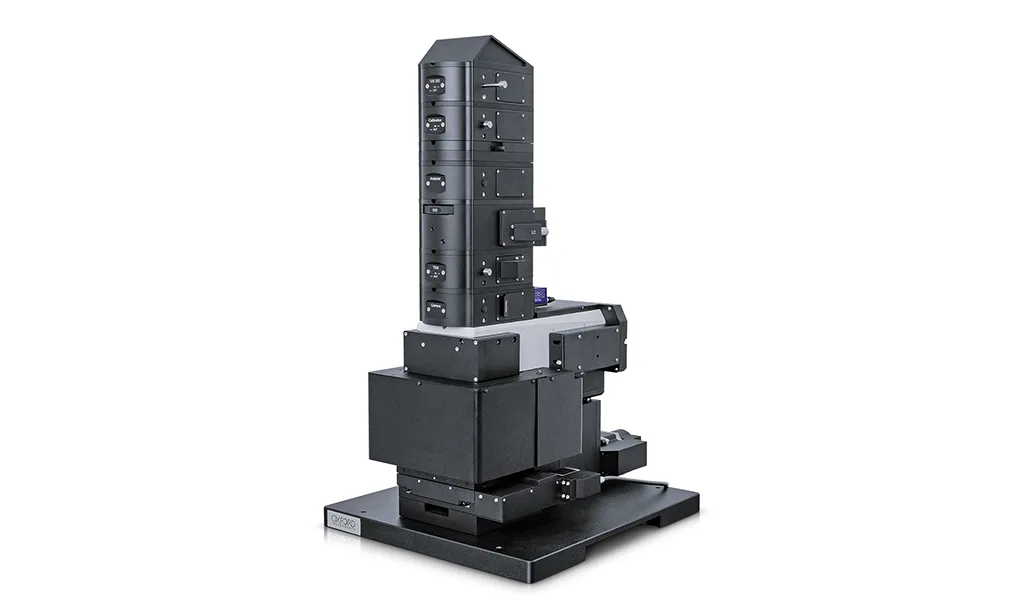

witec360 Raman Imaging Microscope
Brand: Oxford Instruments | Category: Nanotechnology
Oxford Instruments publish the witec360 as the new benchmark for Raman imaging and correlative microscopy, aimed at academic and industrial researchers who need comprehensive analysis at the nanoscale. The core system is broadband from 350 to 1100 nm, with options extending from 266 nm in the UV to 1064 nm in the NIR, and spectral resolution reaches 0.1 cm-1 at 633 nm excitation. Lateral resolution is below 300 nm and depth resolution below 950 nm depending on excitation wavelength, with acquisition below 1 ms per spectrum. Spectrometers are offered at 300 mm or 600 mm focal length carrying up to six gratings, the objective turret holds up to six objectives, and sample positioning travel ranges run from 25 mm by 25 mm to 350 mm by 300 mm.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Core broadband optical range | 350–1,100 nm |
| Laser configuration options | UV 266 nm to NIR 1,064 nm |
| Spectrometer focal-length options | 300 or 600 mm |
| Published spectral resolution | Down to 0.1 cm⁻¹ at 633 nm excitation; configuration dependent |
Selected manufacturer data for the named configuration. Optical, detector and sample-environment options are ordered separately unless included in the quotation. Measurement results depend on the sample, selected components and operating conditions. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample type, measurement method and required spectral/time range
- Source/laser, detector, resolution, sample holder and optical interfaces
- Software, laser safety/site requirements, calibration and application training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
